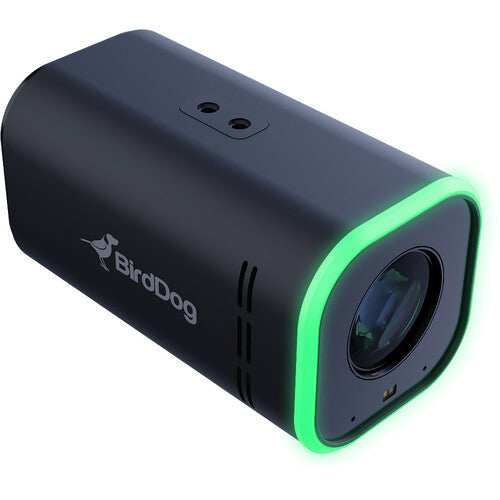

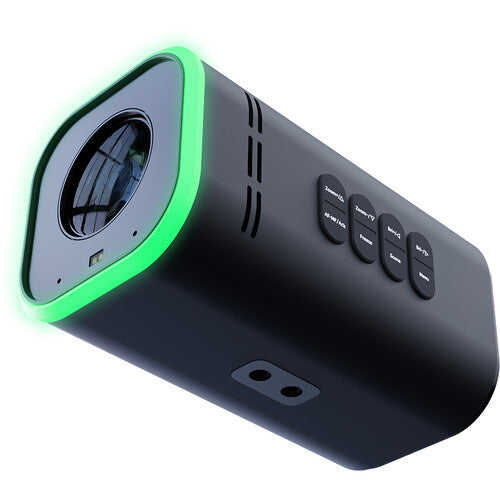

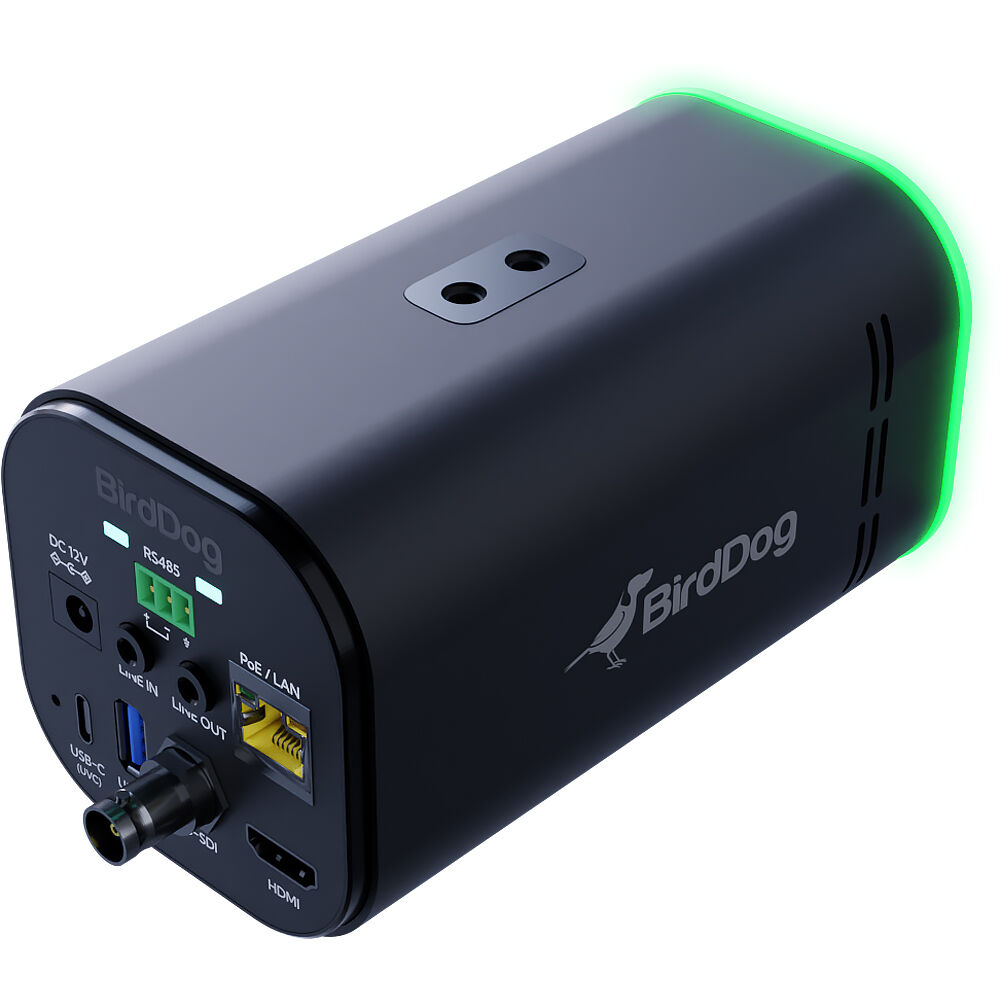

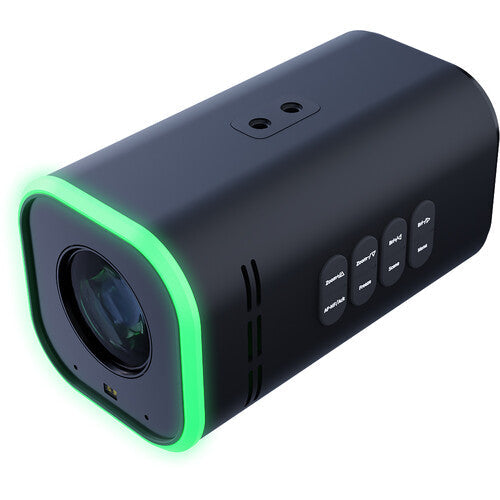

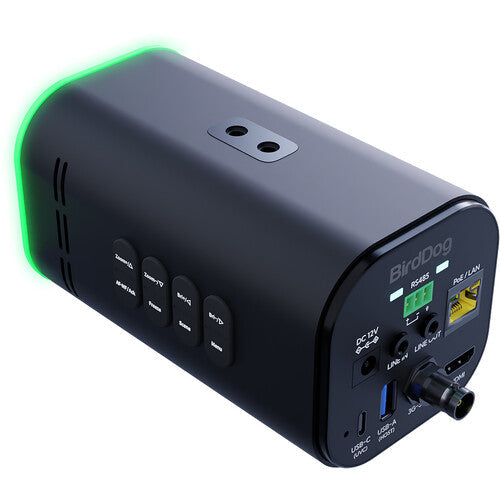

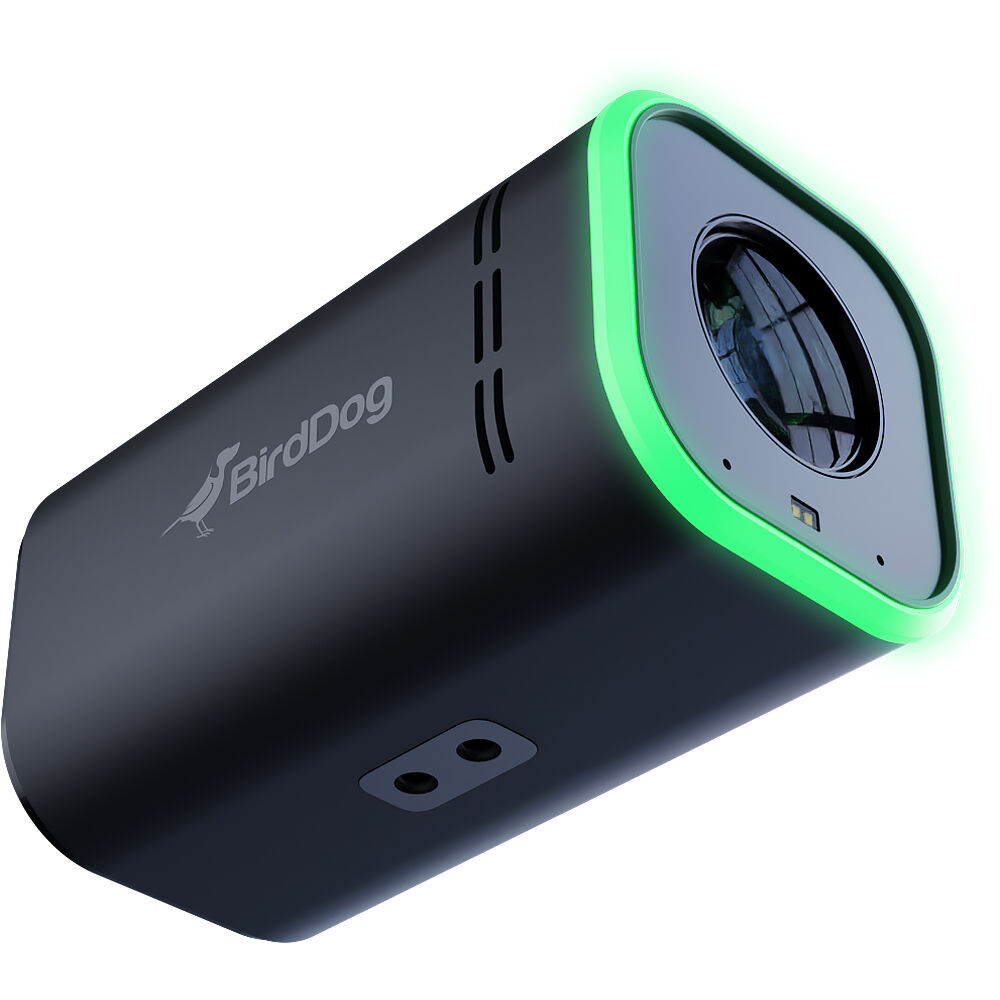

BirdDog Maki Ultra 4K Box Camera 20x (Black)
BirdDog Maki Ultra 20x is a compact 4K60 NDI HX3 box camera with a 1/2.8 inch sensor, longer-reach 20x zoom, HDMI 2.0 and 3G-SDI. From Prosales, South Africa.
SKU: BDMKU20XB
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityAvailable on backorder
This item is on backorder. Place your order now and we will confirm the lead time with you.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The BirdDog Maki Ultra 4K Box Camera 20x (Black) is a compact 4K NDI HX3 box camera (not a PTZ) built for tight and unusual angles. The 20x version pairs the Maki Ultra body with a longer-reach lens for tighter framing from further back.
Key Features
- 4K60 imaging: 1/2.8 inch sensor, 8.4 MP effective.
- 20x optical zoom: 4.7 to 94mm, F1.6 to F3.6.
- HDMI 2.0 and 3G-SDI: simultaneous loopouts plus USB-C UVC.
- NDI native: NDI HX2 and HX3 plus RTMP.
- Time-of-flight autofocus: fast, accurate focus with auto or manual control.
- Hands-on control: eight physical buttons, HALO tally and NDI Mute.
- Built-in audio: onboard mic and 3.5mm line in and out.
Ideal For
Esports and POV angles, houses of worship, education, live production and conferencing.
Specifications
- Form factor: box camera, no pan or tilt motor
- Sensor: 1/2.8 inch CMOS, 8.4 MP effective
- Max video: 2160p at 60/59.94/50/30/29.97/25fps
- Optical zoom: 20x, 4.7 to 94mm, F1.6 to F3.6
- Encoder: NDI HX2, NDI HX3, RTMP
- Outputs: HDMI 2.0, 3G-SDI, USB-C (UVC 1.1, USB 3.0)
- Network: 100M/1000M adaptive Ethernet, PoE (802.3af)
- Control: VISCA, VISCA-IP, NDI, RS-485
- Power: DC 12V or PoE (802.3af), 12W max
- Dimensions: 145 x 79 x 80mm, 0.8kg net
Backed by BirdDog's 5-year global warranty. Available from Prosales, South Africa.
| Form factor | Box camera (no pan or tilt motor) |
| Sensor | 1/2.8 inch CMOS, 8.4 MP effective |
| Max video | 2160p at 60/59.94/50/30/29.97/25fps |
| Optical zoom | 20x, 4.7 to 94mm, F1.6 to F3.6 |
| Encoder protocols | NDI HX2, NDI HX3, RTMP |
| Video outputs | HDMI 2.0, 3G-SDI, USB-C (UVC 1.1, USB 3.0) |
| Network | 100M/1000M adaptive Ethernet, PoE (802.3af) |
| Control protocols | VISCA, VISCA-IP, NDI, RS-485 |
| Focus | Time-of-flight plus auto and manual |
| Audio | Built-in mic, 3.5mm line in / out |
| Power | DC 12V or PoE (802.3af), 12W max |
| Dimensions | 145 x 79 x 80mm, 0.8kg net |
| Warranty | 5-year global |
Compact 4K60 Box Camera, Long Reach
The same palm-sized 4K60 Maki Ultra body with a longer-reach 20x zoom (4.7 to 94mm, F1.6 to F3.6) for tighter framing from further back over NDI HX3.
HDMI 2.0 and 3G-SDI
Simultaneous HDMI 2.0 and 3G-SDI loopouts plus a USB-C UVC output feed switchers, recorders and conferencing apps at once, with time-of-flight autofocus keeping shots sharp.
Hands-On and NDI Native
Eight physical buttons, a HALO tally, a built-in mic and NDI Mute for privacy make it quick to run on esports rigs, band setups, houses of worship and classrooms.
