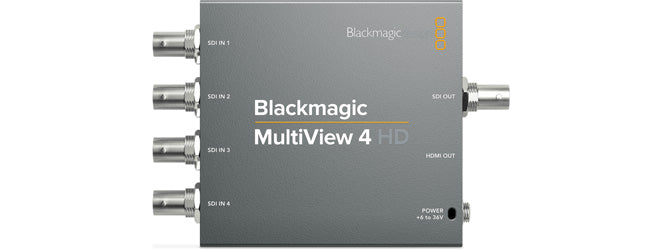

Blackmagic Design MultiView 4 HD
Compact multi viewer that displays 4 independent SD and HD SDI sources on a single screen with SDI and HDMI output.
SKU: BLA-HDL-MULTIP3G/04HD
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityOnly 2 left
In stock and dispatched from our Johannesburg warehouse.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The Blackmagic MultiView 4 HD is a compact multi viewer that lets you monitor 4 completely independent SD and HD SDI sources on a single display at the same time. Each view can mix formats and frame rates, so you can keep an eye on every feed in your production from one screen.
With both SDI and HDMI outputs, it drives professional SDI displays, projectors or even big screen televisions. Customisable on-screen overlays add labels and audio meters to every view for clear, organised monitoring.
Key Features
- Monitor 4 independent SD and HD SDI sources on one display
- Mix any combination of SD and HD formats and frame rates
- SDI and HDMI outputs for SDI displays, projectors or TVs
- Custom labels and audio meters in each view
- Auto detection of SD or HD on all SDI inputs
- Free MultiView software for Mac and Windows
Ideal For
- Live production and broadcast monitoring
- Multi-camera studio and OB setups
- Editing suites and machine rooms
- Streaming and event production
Specifications
- 4 x 10-bit SD-SDI and HD-SDI inputs
- 1 x HD-SDI output and 1 x HDMI type A output
- Audio sampled at 48kHz, 24-bit
- 12V power supply included, 5.5 watts consumption
- Operating temperature 0 to 40 degrees C
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| Views | 4 independent SDI sources |
| SDI inputs | 4 x 10-bit SD-SDI and HD-SDI |
| SDI output | 1 x HD-SDI |
| HDMI output | 1 x HDMI type A, supports monitor EDID |
| SD standards | 525i59.94 NTSC, 625i50 PAL |
| HD standards | 720p and 1080i and 1080p up to 1080p60 |
| Overlays | Custom labels and audio meters per view |
| Audio | 48kHz, 24-bit |
| Control | MultiView software for Mac and Windows |
| Power | 12V supply included, 6 to 36V DC |
| Power consumption | 5.5 watts |
| Operating temperature | 0 to 40 degrees C |
| Warranty | 3 year limited |
| Included | MultiView 4 HD, 12V power supply |
Four Feeds, One Screen
Monitor 4 completely independent SDI sources on a single display at the same time. You can mix any combination of SD and HD formats and frame rates without external conversion.
SDI and HDMI Output
Both HD-SDI and HDMI type A outputs let you drive professional SDI monitors, projectors or big screen televisions. The HDMI output reads the monitor EDID for plug and play setup.
Clear Custom Overlays
Each view can display custom labels and audio meters so you always know exactly what you are looking at. Free MultiView software for Mac and Windows makes configuration quick and easy.
