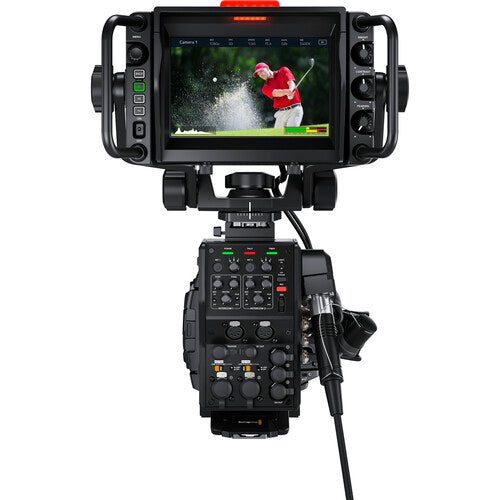

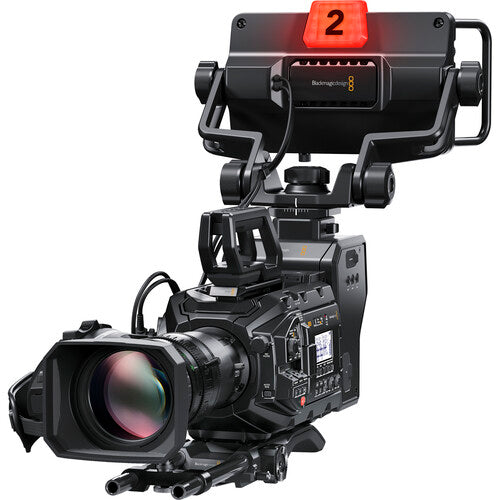

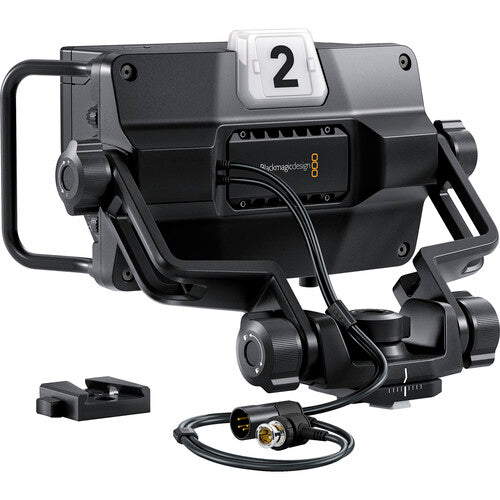

Blackmagic Design URSA Studio Viewfinder G2
A bright 7 inch 2000 nit studio viewfinder with V-lock mount and physical framing controls for URSA cameras.
SKU: BLA-CINEURSANSVF2
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityOnly 2 left
In stock and dispatched from our Johannesburg warehouse.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The Blackmagic URSA Studio Viewfinder G2 is a large 7 inch viewfinder designed for tripod mounted studio camera work. Its super bright 2000 nit display stays clearly visible even in direct sunlight, making it ideal for live broadcast and outside production environments.
Built with true glass optics and physical controls, it connects directly to the SDI monitor and power output on your URSA camera, so no extra cables or power supplies are required. Large grab handles and an articulated pivot mount let you position the viewfinder independently of the camera.
Key Features
- Large 7 inch 1920 x 1200 high brightness TFT LCD display
- Super bright 2000 nit screen for clear viewing in bright sunlight
- Quick release V-lock mounting bracket for fast camera attachment
- Three side knobs for brightness, contrast and focus peaking control
- Three customizable function buttons for zebra, false color, LUTs and more

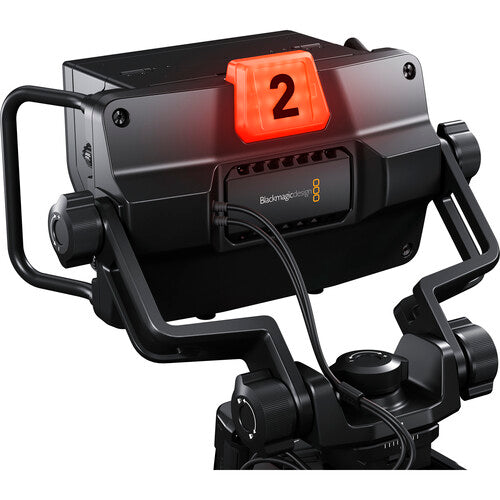

- Large LED tally light with customizable perspex camera numbers
- Detachable sunshade and built-in grab handles with variable tension pivots
Ideal For
- Live multi-camera studio production
- Outside broadcast and sports coverage
- Tripod mounted URSA Broadcast and URSA Mini Pro setups
- Bright outdoor shooting where screen visibility matters
- Professional camera operators needing physical framing controls
Specifications
- 7 inch 1920 x 1200 TFT LCD, 2000 nits brightness
- 1 x BNC SDI input supporting 1.5G and 3G SDI
- 1 x 4 pin XLR 12V power input
- 1 x USB type C for setup and software updates
- Operating temperature 0 to 40 degrees Celsius
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| Display Size | 7 inch TFT LCD |
| Resolution | 1920 x 1200 |
| Brightness | 2000 nits |
| SDI Input | 1 x BNC, 1.5G and 3G SDI |
| Power Input | 1 x 4 pin XLR, 12V |
| USB | 1 x USB type C for setup and updates |
| Mount | Quick release V-lock bracket |
| Controls | Dial, 3 knobs, 3 customizable buttons |
| Tally | Large LED tally with perspex numbers |
| Operating Temperature | 0 to 40 degrees Celsius |
| Storage Temperature | -20 to 60 degrees Celsius |
| Power Source | Via URSA Mini 12V power output |
Bright 2000 Nit Display
The super bright 7 inch 2000 nit screen stays clearly visible even in direct sunlight. True glass optics deliver sharp, accurate focus for critical studio work.
Physical Framing Controls
Three side knobs control brightness, contrast and focus peaking, while three customizable buttons can trigger zebra, false color, LUTs and more. Operators get instant tactile control without diving into menus.
Cable Free V-Lock Mounting
A quick release V-lock bracket attaches the viewfinder to the camera in seconds. It draws SDI and 12V power directly from the URSA camera, so no extra cables or power supplies are needed.
