Blackmagic Design Videohub 20x20 12G
20 input, 20 output 12G-SDI zero latency router in 1RU with full front panel control, up to 2160p60.
SKU: BLA-VHUBSMAS12G020020
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityAvailable on backorder
This item is on backorder. Place your order now and we will confirm the lead time with you.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The Blackmagic Videohub 20x20 12G is a high capacity zero latency video router with 20 12G-SDI inputs and 20 12G-SDI outputs in a single rack unit. It routes any combination of SD, HD and Ultra HD signals at the same time, supporting every SDI standard up to 2160p60.

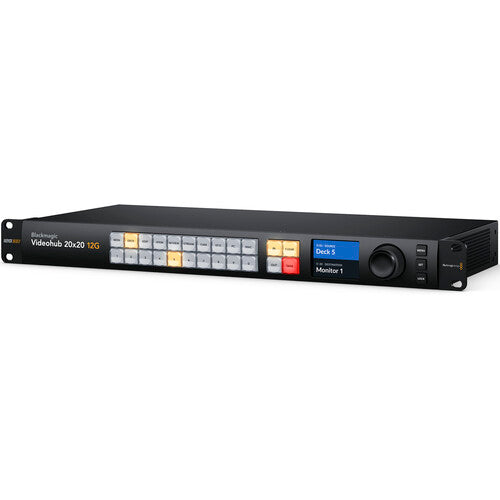

A built in front panel with 24 buttons, a search dial and a 2.2 inch colour display lets you route connections directly without a computer. With SDI re-clocking, automatic standard detection and Ethernet control, it is a powerful core router for large broadcast and live production systems.
Key Features
- 20 x 12G-SDI inputs and 20 x 12G-SDI outputs in 1RU
- Zero latency routing of mixed SD, HD and Ultra HD signals
- Supports all SDI standards up to 2160p60, plus DVB-ASI
- Front panel with 24 buttons, search dial and 2.2 inch display
- SDI re-clocking and automatic per input standard detection
- 10/100/1000 BASE-T Ethernet control with free Mac and Windows software
- Compatible with Smart Control Pro and Master Control Pro panels
Ideal For
- Large broadcast and master control core routing
- Outside broadcast trucks and live event systems
- Television studios mixing multiple video standards
- Post production and editing facilities
- Streaming and large corporate AV installations
Specifications

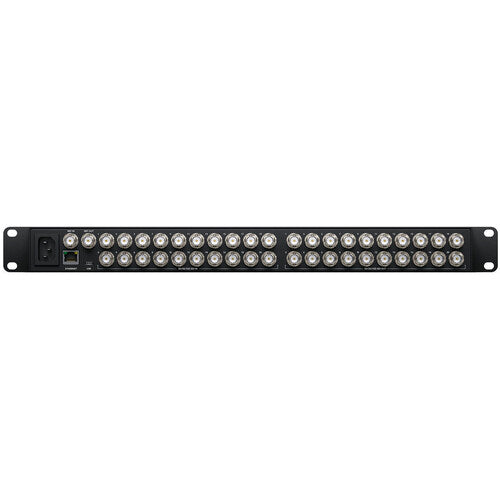

- 20 x 12G-SDI inputs, 20 x 12G-SDI outputs
- Maximum resolution 2160p60 (4Kp60 DCI)
- Supported rates DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G
- Reference input: Tri-Sync or Black Burst
- 10/100/1000 BASE-T Ethernet and USB-C interface
- Internal 100V to 240V AC power, 27.5W max, 1 rack unit
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| SDI Inputs | 20 x 12G-SDI |
| SDI Outputs | 20 x 12G-SDI |
| Supported Rates | DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G |
| Max Resolution | 2160p60 (4Kp60 DCI) |
| Reference Input | Tri-Sync or Black Burst |
| Ethernet | 10/100/1000 BASE-T |
| Computer Interface | USB Type-C |
| Front Panel | 24 buttons, search dial, 2.2 inch display |
| Audio | 48kHz, 24-bit |
| Software | Free Mac and Windows control |
| Power | Internal 100V to 240V AC |
| Power Usage | 27.5W max |
| Size | 1 rack unit |
| Operating Temp | 0 to 40 degrees C |
| In The Box | Videohub 20x20 12G, software QR card |
High Capacity 12G-SDI Routing
Twenty inputs and twenty outputs route any combination of SD, HD and Ultra HD signals at the same time with no delay. Every input supports standards up to 2160p60.
Full Front Panel Control
A built in panel with 24 buttons, a search dial and a 2.2 inch colour display lets you route connections directly. No computer is needed during live operation.
Dense 1RU Core Router
Forty connections in a single rack unit make this a space efficient core router for larger studios and trucks. Ethernet control plus free Mac and Windows software add full remote operation.
