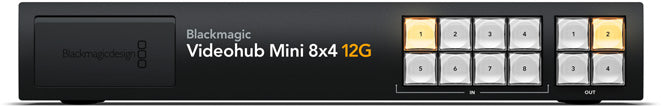

Blackmagic Design Videohub Mini 8x4 12G

The Blackmagic Videohub Mini 8x4 12G is a compact, zero latency video router that handles any combination of SD, HD and Ultra HD signals at the same time. With 8 12G-SDI inputs and 4 12G-SDI outputs in a two thirds rack width chassis, it is ideal for live production, broadcast and post facilities that need flexible, reliable routing.

The built in front panel lets you route connections instantly, and even includes an emergency 12G-SDI input plus USB-C webcam output for fast patching of external gear. SDI re-clocking and automatic standard detection mean every input can run a different television standard.

Key Features

• 8 12G-SDI inputs and 4 12G-SDI outputs supporting standards up to 2160p60
• Zero latency routing that mixes SD, HD and Ultra HD signals simultaneously
• SDI re-clocking with automatic detection of 270Mb, 1.5G, 3G, 6G and 12G rates
• Front panel control with emergency 12G-SDI input and USB-C webcam output
• 10/100/1000 BASE-T Ethernet control with free Mac and Windows software
• Compatible with Smart Control Pro and Master Control Pro hardware panels

Ideal For

• Live event and outside broadcast signal routing
• Television studios mixing multiple video standards
• Post production and editing suites
• Corporate AV and streaming installations
• Compact flypack and on location production kits

Specifications

• 8 x 12G-SDI inputs, 4 x 12G-SDI outputs
• Maximum resolution 2160p60 (4Kp60 DCI)
• Reference input: Tri-Sync or Black Burst
• 1 x USB Type-C 3.1 Gen 1 for webcam out and updates
• Internal 100V to 240V AC power, plus 12V DC input, 23W max
• Dimensions 441mm W x 177mm D x 43mm H, weight 2.5 kg

Available from Prosales Broadcast, South Africa's authorised Blackmagic Design reseller and integrator.
