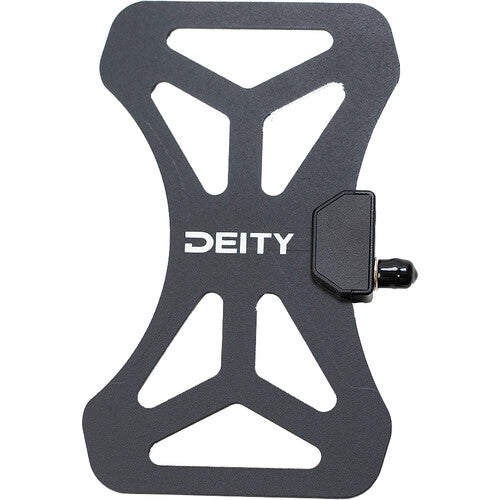

Deity BF1 - Butterfly Antenna
The Deity BF1 is a passive wideband UHF butterfly antenna covering 470 MHz to 1 GHz, extending the range and reliability of wireless microphone systems for film, TV and live events. From Prosales, South Africa's authorised Deity distributor.
SKU: DTR0289D50
Pay over 2 to 6 interest-free instalments with Stitch at checkout.
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityIn stock, ready to dispatch
In stock and dispatched from our Johannesburg warehouse.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The Deity BF1 Butterfly Antenna is a passive, wideband UHF antenna for extending the range and reliability of professional wireless microphone systems. Covering 470 MHz to 1 GHz with an omni-directional pattern, its composite fibreglass butterfly panel delivers consistent reception across a broad aperture, making it well suited to large stage productions, broadcast events and any setup where antennas are mounted remotely from the receivers. The IP65 weather-sealed housing lets it work indoors or out.
Key Features
- Wideband UHF coverage: 470 MHz to 1 GHz, compatible with all major wireless microphone systems.
- Passive omni-directional design: average +2.2 dBi gain for reliable reception across the full band.
- BNC connector: 50 Ohm impedance with included BNC-to-BNC and BNC-to-right-angle-SMA cables for flexible connection.
- Weather-sealed: IP65-rated composite fibreglass housing for indoor and outdoor use.
- Easy mounting: 1/4 inch-20 female thread and an articulating arm for stands, carts or the AMB1 bar.
Compatible With
- Wireless receivers: any UHF receiver with a BNC or SMA antenna input, using the supplied cables.
- Deity AMB1: mounts on the antenna bar alongside the SRD-Mini distributor.
Ideal For
- Large theatre and stage productions.
- Broadcast and live event sound.
- Any wireless setup needing reliable, wideband antenna coverage.
Distributed exclusively in South Africa by Prosales. Compatible with the Deity AMB1 antenna mount bar and SRD-Mini.
| Type | Passive UHF butterfly antenna |
| Frequency range | 470 MHz to 1 GHz |
| Gain | Average +2.2 dBi |
| Polarisation | Linear |
| Pattern | Omni-directional |
| Impedance | 50 Ohm |
| SWR | Less than 1.5 (550 MHz to 750 MHz) |
| Connector | BNC |
| Housing | Composite fibreglass, IP65 weather-sealed |
| Dimensions | 190 x 118 x 14 mm |
| Weight | 95 g (antenna only) |
| Mounting | 1/4 inch-20 female thread |

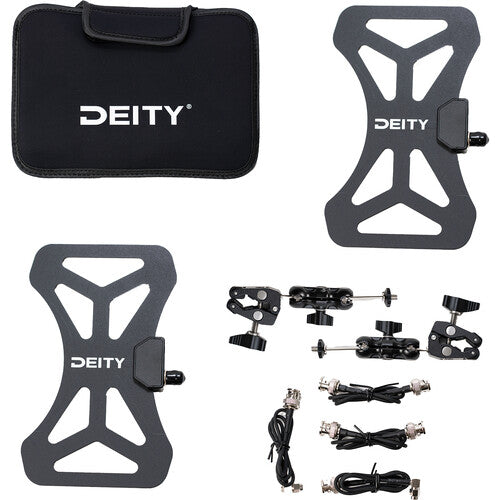

| Included | 2x antenna, 2x articulating arm, 2x BNC to BNC cable, 2x BNC to right-angle SMA cable, carrying case |
Wideband 470 MHz to 1 GHz
A single passive antenna covers the full UHF range used by professional wireless mic systems. It works with all major brands across the band.
Reliable Omni Reception
An omni-directional pattern with average +2.2 dBi gain delivers consistent coverage when antennas are mounted away from the receivers. SWR stays below 1.5 across the core band.
Weather-Sealed and Ready
The IP65 fibreglass housing handles indoor and outdoor use, and the kit ships with BNC and SMA cabling plus articulating arms. Mount it on a stand, cart or the AMB1 bar.
