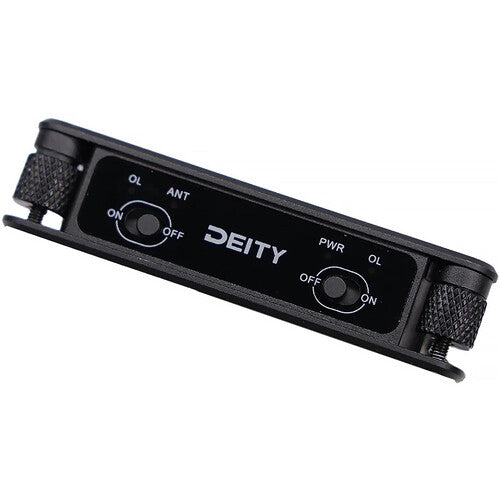

Deity SRD Mini
The Deity SRD-Mini is an ultra-slim, lightweight antenna distribution system that splits two BNC inputs to eight SMA outputs with active gain compensation over a 470 MHz to 1 GHz range. From Prosales, South Africa's authorised Deity distributor.
SKU: DTR0289D51
Pay over 2 to 6 interest-free instalments with Stitch at checkout.
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityIn stock, ready to dispatch
In stock and dispatched from our Johannesburg warehouse.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float

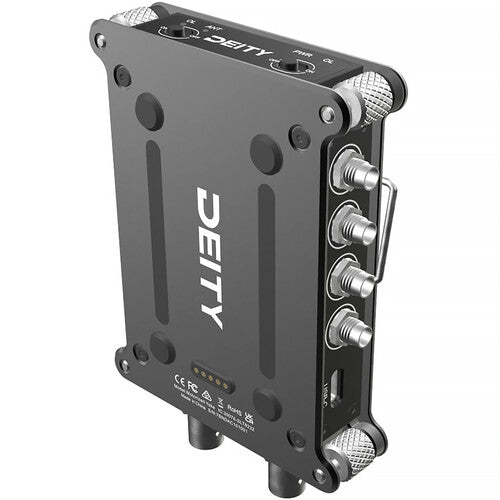

The Deity SRD-Mini is an ultra-slim, lightweight antenna distribution system for professional wireless microphone setups. It takes one pair of antennas on two BNC inputs (A and B) and splits the signal across eight SMA outputs, feeding up to four dual-channel receivers while an active splitter compensates for cable and splitter losses. A wide 470 MHz to 1 GHz range keeps your RF setup clean and organised in a sound bag or on a sound cart.
Key Features
- Active distribution: two BNC inputs feed eight SMA outputs (1A x 4A / 1B x 4B) for up to four dual-channel receivers.
- Gain compensation: active splitter delivers +3 dB to +9 dB gain to offset cable and splitter losses.
- Wide RF range: 470 MHz to 1 GHz covers all major UHF wireless systems.
- Clean signal path: port isolation greater than 20 dB and a noise figure below 1.5 dB.
- Flexible power: 5V USB-C, 12 to 16.8V Hirose, or SPD-Mini pogo-pin docking.
- Ultra-slim build: aluminium alloy body just 20.8 mm thick and 185.5 g.
Ideal For
- Sound mixers running four or more wireless channels from a single antenna pair.
- Sound bag setups that need compact, lightweight antenna sharing.
- Sound carts using remote antenna placement.
Distributed exclusively in South Africa by Prosales. Compatible with the AMB1 antenna mount bar.
| Type | Active antenna distribution system |
| Frequency range | 470 MHz to 1 GHz |
| Gain | +3 dB to +9 dB |
| Inputs | 2x 50 Ohm BNC (A and B) |
| Outputs | 8x 50 Ohm SMA (1A x 4A / 1B x 4B) |
| Splitter | Active |
| Port isolation | Greater than 20 dB |
| Noise figure | Less than 1.5 dB |
| Input/output impedance | 50 Ohm |
| Front-end max input signal | +13 dBm |
| Overload indication | 0 dBm |
| Power | 5V USB-C, 12 to 16.8V Hirose, SPD-Mini pogo pins |
| Operating current | Less than 160 mA (HRS4 input) |
| Body | Aluminium alloy |
| Dimensions | 115.5 x 78 x 20.8 mm |
| Weight | 185.5 g |
Active Two-to-Eight Distribution
Two BNC inputs split to eight SMA outputs, feeding up to four dual-channel receivers from a single antenna pair. An active splitter delivers +3 dB to +9 dB gain to compensate for cable losses.
Wide RF Coverage
A 470 MHz to 1 GHz range covers all major UHF wireless systems. Port isolation above 20 dB and a noise figure under 1.5 dB keep the signal path clean and reliable.
Slim, Light and Flexibly Powered
An aluminium alloy body just 20.8 mm thick weighs only 185.5 g, ideal for a sound bag. Power it from 5V USB-C, a 12 to 16.8V Hirose feed, or SPD-Mini pogo-pin docking.
