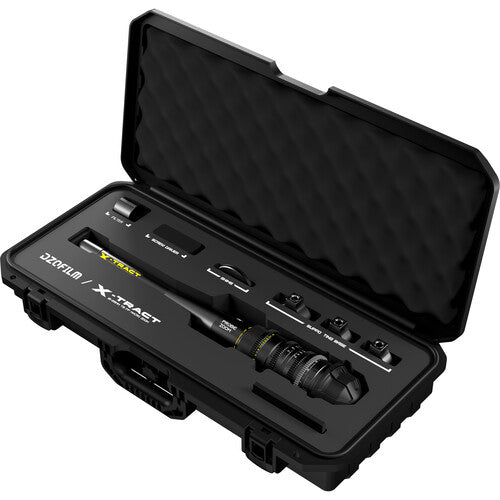

DZOFilm X-tract 18-28mm Metric 90° T8 PL mount with hard case
A full-frame T8 probe zoom with a 90 degree side-view head, reaching into tight spaces to deliver up to 2.1x macro magnification from a right-angle perspective.
SKU: DZO-X1828B
Available on backorder: we don't hold this one on the shelf, but you can order it now and we'll bring it in for you. Lead time is usually around 2 to 3 weeks, though it's often sooner, and we'll confirm the exact timing as soon as your order is placed.
Pay over 2 to 6 interest-free instalments with Stitch at checkout.
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityAvailable on backorder
We bring this item in to order. Place your order now and we will confirm the lead time with you.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The DZOFilm X-tract 18-28mm T8 is a full-frame probe zoom macro lens built to shoot from inside spaces a normal lens can never reach. This 90 degree version uses a side-view head, letting you look at right angles to the barrel and skim along surfaces while delivering up to 2.1x magnification across the full-frame sensor.
Key Features
- 18-28mm full-frame probe zoom with a 1.55x zoom ratio
- Up to 2.1:1 macro magnification
- 90 degree side-view head for right-angle perspectives
- 25 elements in 18 groups for controlled aberration and distortion
- IP57 dustproof and waterproof construction
- ARRI PL mount with standard 0.8 Mod cine gearing
Ideal For
Product, food, nature and tabletop cinematography where you need to move along and around small subjects from a sideways angle with full macro control.
Specifications
- Focal length: 18-28mm
- Aperture: T8 to T45
- Probe view angle: 90 degrees (side view)
- Image circle: 43.2mm
- Mount: ARRI PL, 52mm flange distance
- Iris blades: 10
- Scale: Metric
Available from Prosales, South Africa.
| Focal Length | 18-28mm |
| Aperture | T8 to T45 |
| Probe View Angle | 90 degrees (side view) |
| Maximum Magnification | 2.1:1 |
| Zoom Ratio | 1.55x |
| Image Circle | 43.2mm (full frame) |
| Optical Construction | 25 elements in 18 groups |
| Mount | ARRI PL |
| Flange Distance | 52mm |
| Iris Blades | 10 |
| Gear Pitch | 0.8 Mod |
| Weather Sealing | IP57 dustproof and waterproof |
| Scale | Metric |
90 Degree Side View
The right-angle head looks sideways from the barrel, letting you skim along surfaces and shoot subjects the camera body could never face head on.
True Macro Magnification
Up to 2.1x magnification with a 1.55x internal zoom brings tiny subjects to life on a full-frame sensor with sharp, detailed rendering.
Built for the Field
IP57 weather sealing, PL mount and standard cine gearing make it ready for demanding productions.
