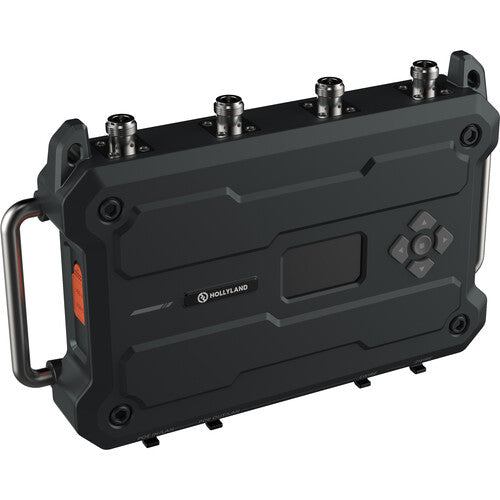

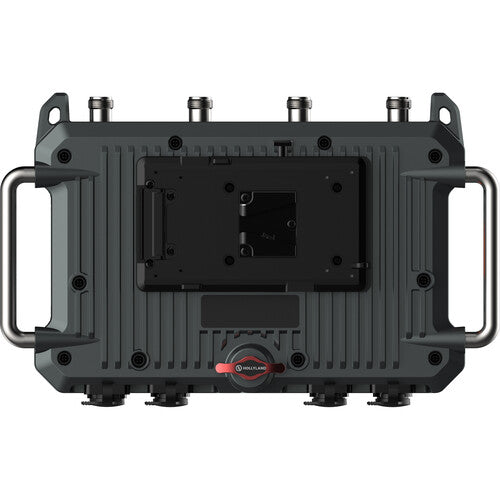

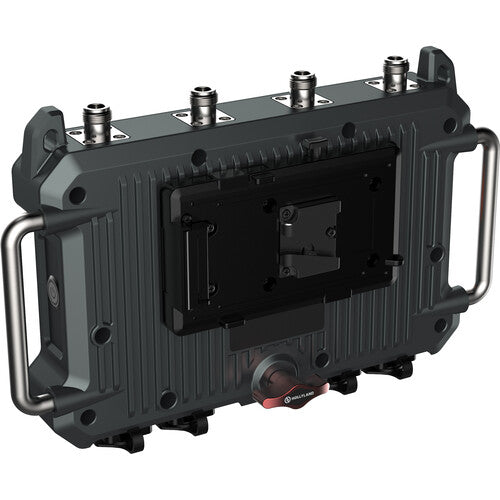

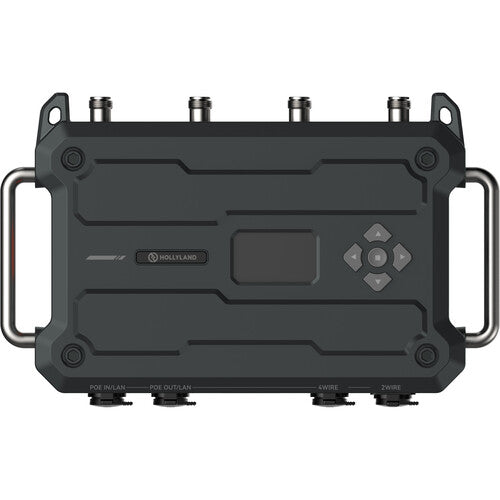

Hollyland Solidcom H1 ANT01 Antenna

The Hollyland Solidcom H1 ANT01 is a roaming antenna unit for the Solidcom H1 full-duplex wireless intercom platform, delivering a 500m line-of-sight range and seamless coverage handover across the production area. It is designed for crews who need to extend intercom range across large venues, studios and outdoor sets.

Key Features

• Coverage expansion: Extends the Solidcom H1 working area with a 500m line-of-sight range per antenna.
• Seamless roaming: Cascade antennas so beltpack users move between coverage zones without dropouts.
• Cascade capacity: Link up to three ANT01 units in standalone mode, or up to eight when paired with the Geo Central Station.
• User support: Supports up to 30 beltpacks and 12 groups standalone, scaling to 80 beltpacks and 100 groups with the Geo Central Station.
• PoE powered: Powered over Ethernet for a clean, single-cable install between antennas.
• Professional interfaces: Network cabling with Dante compatibility for integration into larger audio systems.

Ideal For

• Large studios and multi-camera productions needing extended intercom coverage
• Live events and stages where crew roam across wide areas
• Outdoor sets and venues requiring cascaded antenna zones

Specifications

• System: Hollyland Solidcom H1 full-duplex wireless intercom
• Frequency band: 1.9GHz DECT
• Line-of-sight range: 500m per antenna
• Cascade: Up to 3 antennas standalone, up to 8 with Geo Central Station
• Capacity: Up to 30 beltpacks and 12 groups standalone
• Power: PoE (Power over Ethernet)
• Power consumption: Approximately 15.5W
• Integration: Dante-compatible network interfaces

Available from Prosales Broadcast, South Africa.
