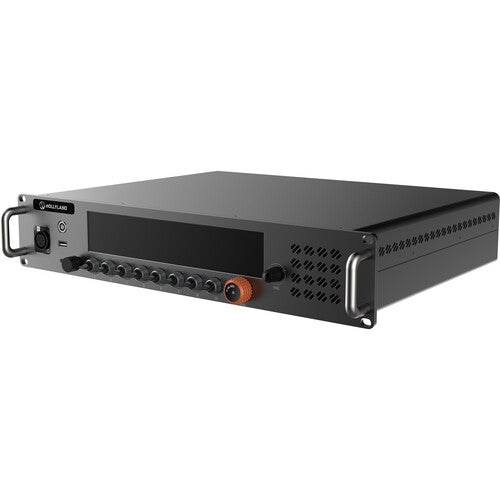

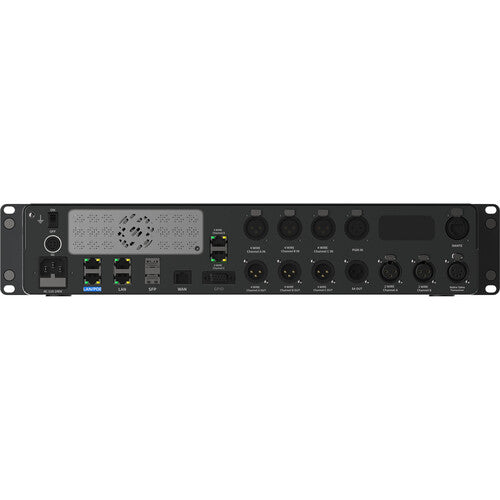

Hollyland Solidcom H1 Geo Central Station

The Hollyland Solidcom H1 Geo Central Station is the base and control unit of the Solidcom H1 large-scale roaming intercom platform. It scales to as many as 80 wireless beltpacks and up to 100 groups, cascades up to 8 Solidcom ANT01 antenna units for coverage over 4 million square metres, and adds native Dante and standard 2-wire and 4-wire interfaces, making it built for stadiums, large venues, and distributed productions.

Key Features

• Large-Scale Capacity: Supports up to 80 wireless beltpacks and up to 100 communication groups from a single central station.
• Roaming Cascade Coverage: Cascades up to 8 Solidcom ANT01 units, each covering roughly 500m (1640ft) radius, for combined coverage over 4 million square metres.
• Native Dante: Built-in Dante support with 4x4 network ports integrates the system into audio-over-IP infrastructure without extra hardware.
• Third-Party Integration: Standard 2-wire and 4-wire interfaces connect directly to existing third-party intercom systems.
• Cloud App Access: Up to 8 cloud app users can connect at once, and antenna units can be cascaded over the internet for distributed, cloud-based intercom.
• Fast Setup: The central station and Solidcom ANT01 units connect over network cable with no manual IP setup, and the system is remotely configurable via the web.
• Call Toggle Control: Eight call toggle switches allow quick switching between call states during live operation.

Ideal For

• Stadiums and very large venues
• Large-scale broadcast and live event productions
• Distributed teams needing cloud-connected intercom
• Facilities integrating with Dante and existing intercom systems

Specifications

• Role: Central station for the Solidcom H1 roaming platform
• Beltpack Capacity: Up to 80 wireless beltpacks
• Groups: Up to 100
• Antenna Cascade: Up to 8 Solidcom ANT01 units
• Coverage: Over 4 million square metres
• Per-Antenna Range: Up to 500m (1640ft) radius per ANT01
• Audio Networking: Native Dante, 4x4 network ports
• Third-Party Interfaces: 2-wire and 4-wire
• Cloud Users: Up to 8 app users, web-configurable

Available from Prosales Broadcast, South Africa.
