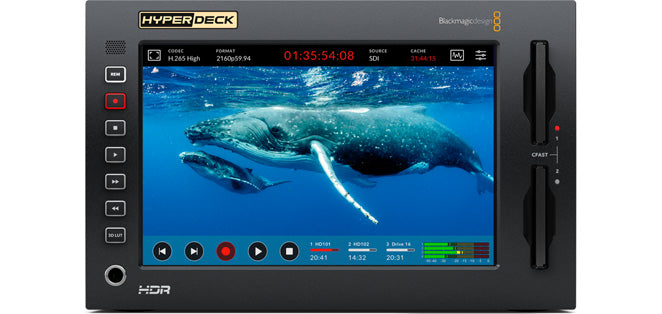

Blackmagic Design HyperDeck Extreme 4K HDR
High end broadcast recorder capturing H.265 and ProRes to 2160p60 with a 7 inch HDR touchscreen, 12G-SDI and analog video.
SKU: BLA-HYPERD/RSTEX4KHDR
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityOnly 2 left
In stock and dispatched from our Johannesburg warehouse.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The HyperDeck Extreme 4K HDR is a high end broadcast recorder and player that captures H.265 and ProRes files in all SD, HD and Ultra HD standards up to 2160p60. A large 7 inch HDR touchscreen, 12G-SDI, HDMI and analog video connections, plus optional internal cache make it ideal for master recording, archiving and playout.
With CFast 2.0 media, USB-C disk recording, 33 point 3D LUTs and balanced XLR audio, it brings the quality and connectivity of a traditional broadcast deck to modern file based workflows.
Key Features
- Records and plays back H.265 and ProRes up to 2160p60
- 7 inch 1920 x 1200 HDR touchscreen at 2000 nits, DCI-P3 100 percent
- 12G-SDI, HDMI 2.0 and analog component and composite video connections
- Two CFast 2.0 card slots plus USB-C external disk recording
- Optional M.2 PCIe NVMe internal cache up to 16Gb/s
- Four channel balanced XLR analog audio and RS-422 deck control
Ideal For
- Broadcast master recording and playout
- Archiving from SDI, HDMI and analog sources
- HDR finishing and on set monitoring
- Live event and studio playback
- Tape to file migration with analog inputs
Specifications
- Max resolution: 2160p60 Ultra HD and 4K DCI
- Codecs: H.265, ProRes, DNxHD, DNxHR and H.264
- Connections: 12G-SDI, HDMI 2.0, analog component and composite, USB-C, 10Gb Ethernet
- Media: two CFast 2.0 slots, USB-C disk and optional M.2 NVMe cache
- Power: internal 100 to 240V AC plus 12V DC 4-pin XLR, 190W max
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| Max recording resolution | 2160p60 Ultra HD and 4K DCI |
| SDI | 1 x 12G-SDI input, 12G-SDI A and B outputs, 3G-SDI monitor out |
| HDMI | 1 HDMI 2.0 input, 1 HDMI 2.0 output |
| Analog video | Component YUV (3 BNC) and composite NTSC/PAL (1 BNC) |
| Codecs | H.265, ProRes, DNxHD, DNxHR, H.264 |
| HDR | 33 point 3D LUTs, REC 601, 709 and 2020 |
| Display | 7 inch 1920 x 1200, 2000 nit DCI-P3 100 percent touchscreen |
| Analog audio | 4 channel balanced XLR plus 2 channel RCA |
| Embedded audio | 64 channel SDI, 8 channel HDMI |
| Recording media | 2 CFast 2.0 slots plus USB-C disk |
| Internal cache | Optional M.2 PCIe NVMe up to 16Gb/s |
| Ethernet | 10Gb/s |
| Control | RS-422 in and out, XLR timecode, BNC reference |
| Power | Internal 100 to 240V AC and 12V DC 4-pin XLR, 190W max |
| Form factor | 3 RU height, half rack width |
Bright 7 Inch HDR Touchscreen
A 7 inch 1920 x 1200 screen at 2000 nits covers 100 percent of DCI-P3 for accurate HDR monitoring. On screen touch controls make navigating settings, scrubbing footage and managing media fast and intuitive.
Connect Almost Any Source
Alongside 12G-SDI and HDMI 2.0, the Extreme adds analog component and composite inputs plus balanced XLR audio. That makes it perfect for archiving older tape formats and bringing legacy material into modern file workflows.
Optional Internal Cache
An optional M.2 PCIe NVMe card adds internal cache recording at up to 16Gb/s. This protects your recordings if media runs out and lets you keep capturing at the highest data rates without interruption.
