Blackmagic Design HyperDeck Extreme 8K HDR
Flagship broadcast recorder capturing up to 8K 4320p60 in H.265 and ProRes with quad link 12G-SDI and a 7 inch HDR touchscreen.
SKU: BLA-HYPERD/RSTEX8KHDR
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityAvailable on backorder
This item is on backorder. Place your order now and we will confirm the lead time with you.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The HyperDeck Extreme 8K HDR is Blackmagic Design's most advanced broadcast recorder, capturing and playing back resolutions all the way up to 8K at 4320p60 in efficient H.265 and ProRes formats. It includes everything in the 4K model and adds 8K recording over quad link 12G-SDI, along with built in scopes that switch to HDR scopes when working in HDR.
A large 7 inch HDR touchscreen, analog and digital connections, CFast 2.0 media and an optional internal cache make it ideal for high resolution master recording, archiving and playout.
Key Features
- Records and plays back up to 8K 4320p60 in H.265 and ProRes
- Quad link 12G-SDI for high resolution capture and playback
- 7 inch 1920 x 1200 HDR touchscreen at 2000 nits, DCI-P3 100 percent
- Built in scopes that switch to HDR scopes in HDR formats
- Two CFast 2.0 card slots plus USB-C external disk recording
- Four channel balanced XLR analog audio and RS-422 deck control
Ideal For
- 8K and Ultra HD master recording and playout
- HDR finishing and accurate on set monitoring
- Archiving from SDI, HDMI and analog sources
- High resolution studio and broadcast installations
- Live event playback and ingest
Specifications
- Max resolution: 8K 4320p60
- Codecs: H.265 and ProRes
- Connections: quad link 12G-SDI, HDMI 2.0, analog video, USB-C
- Media: two CFast 2.0 slots, USB-C disk and optional M.2 NVMe cache
- Power: internal 100 to 240V AC plus 12V DC 4-pin XLR input
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| Max recording resolution | 8K 4320p60 |
| Codecs | H.265 and ProRes |
| SDI | Quad link 12G-SDI for 8K capture and playback |
| HDMI | HDMI 2.0 input and output |
| Analog video | Component YUV and composite NTSC/PAL |
| Display | 7 inch 1920 x 1200, 2000 nit DCI-P3 100 percent touchscreen |
| Scopes | Built in, switch to HDR scopes in HDR formats |
| Analog audio | 4 channel balanced XLR plus 2 channel RCA |
| Recording media | 2 CFast 2.0 slots plus USB-C disk |
| Internal cache | Optional M.2 PCIe NVMe |
| Control | RS-422 deck control with XLR timecode and BNC reference |
| Color | 10-bit, REC 601, 709 and 2020 |
| Power | Internal 100 to 240V AC and 12V DC 4-pin XLR input |
| Form factor | Half rack width chassis |
Full 8K Recording And Playback
Capture and play back resolutions up to 8K at 4320p60 using efficient H.265 and ProRes formats. Quad link 12G-SDI carries the high resolution signal in and out for the most demanding productions.

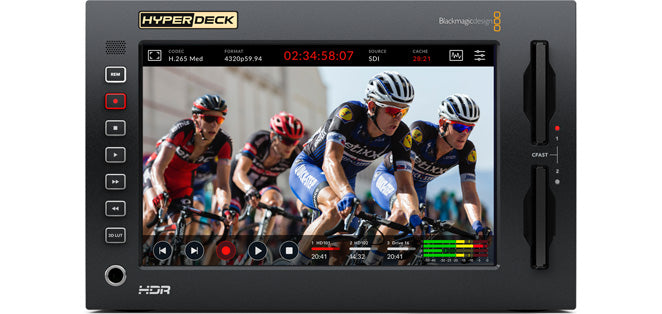

HDR Touchscreen With Scopes
A 7 inch 1920 x 1200 screen at 2000 nits covers 100 percent of DCI-P3 for accurate HDR monitoring. Built in scopes automatically switch to HDR scopes when you work in HDR formats.
Professional Connections And Media
Alongside SDI and HDMI it offers analog video and four channel balanced XLR audio for archiving and broadcast integration. Two CFast 2.0 slots plus USB-C disk recording and an optional internal cache keep capture reliable.
