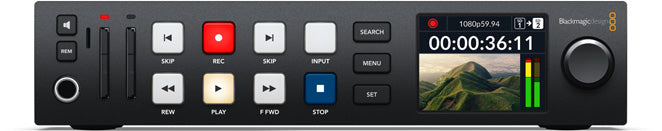

Blackmagic Design HyperDeck Studio HD Plus

The HyperDeck Studio HD Plus is a professional broadcast deck that records and plays back high quality ProRes, DNx and H.264 files to common SD cards or external USB drives. It builds on the compact HyperDeck Studio HD Mini by adding 6G-SDI, an SDI loop output, a dedicated monitoring output with overlays and HDR support.

Housed in a half rack, 1 RU chassis, it pairs a 2.2 inch LCD with thirteen transport buttons and a search dial for fast, tactile control, making it ideal for live production, master recording and playback in any studio or broadcast environment.

Key Features

• Records and plays back ProRes up to Ultra HD 30fps and HD up to 60fps
• Two 6G-SDI outputs with loop out for fill and key playback up to 1080p60
• Dedicated 3G-SDI monitoring output with on screen overlays
• Two SD card slots plus USB-C 3.0 for external disk recording
• RS-422 deck control, timecode and reference in and out for broadcast integration
• Built in mono speaker and headphone jack for instant audio monitoring

Ideal For

• Live broadcast and event production playback
• Master recording in studios and OB vans
• Playout of graphics, fill and key content
• Archive and ingest workflows
• Multi-deck installations under RS-422 control

Specifications

• Codecs: ProRes, DNxHD, DNxHR and H.264
• Connections: 6G-SDI in and out, HDMI 2.0 in and out, USB-C 3.0
• Media: two SD card slots (UHS-I and UHS-II) plus external USB disk
• Power: internal 100 to 240V AC, plus 12V DC 4-pin XLR input
• Format: half rack width, 1 RU height

Available from Prosales Broadcast, South Africa's authorised Blackmagic Design reseller and integrator.
