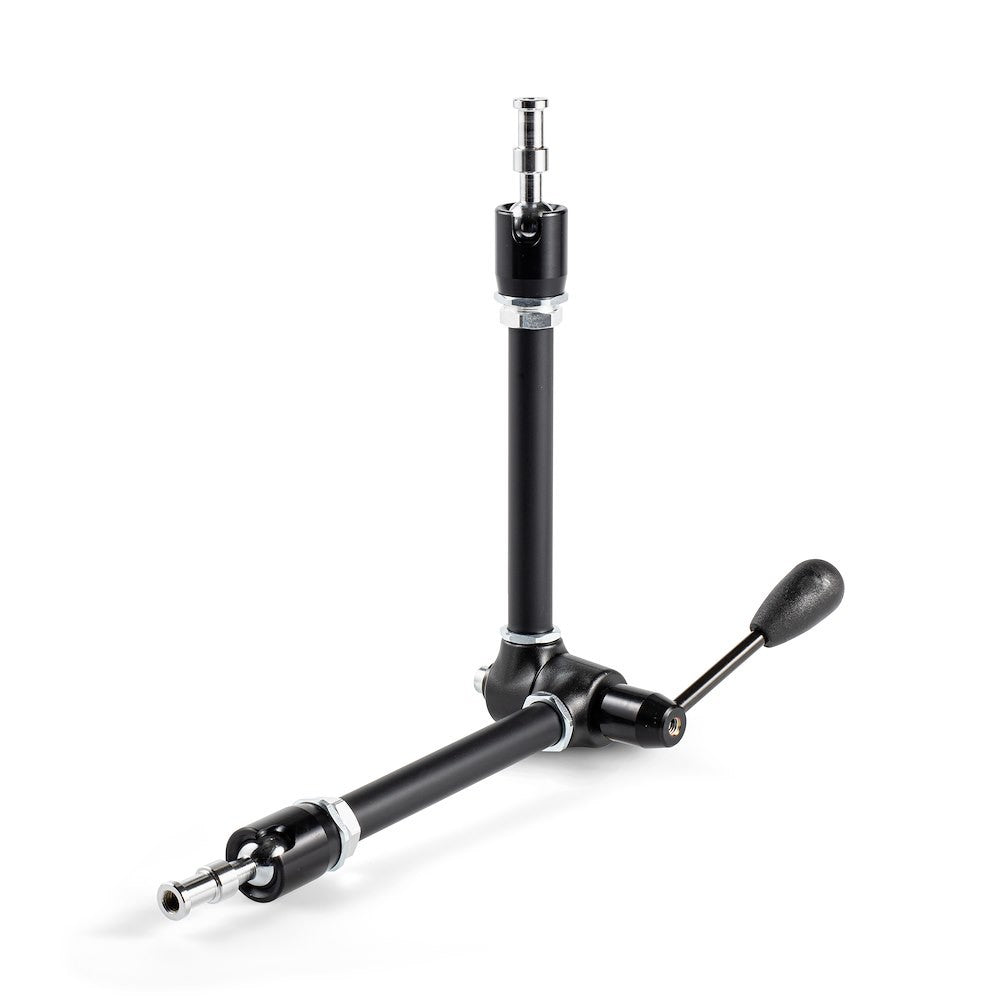

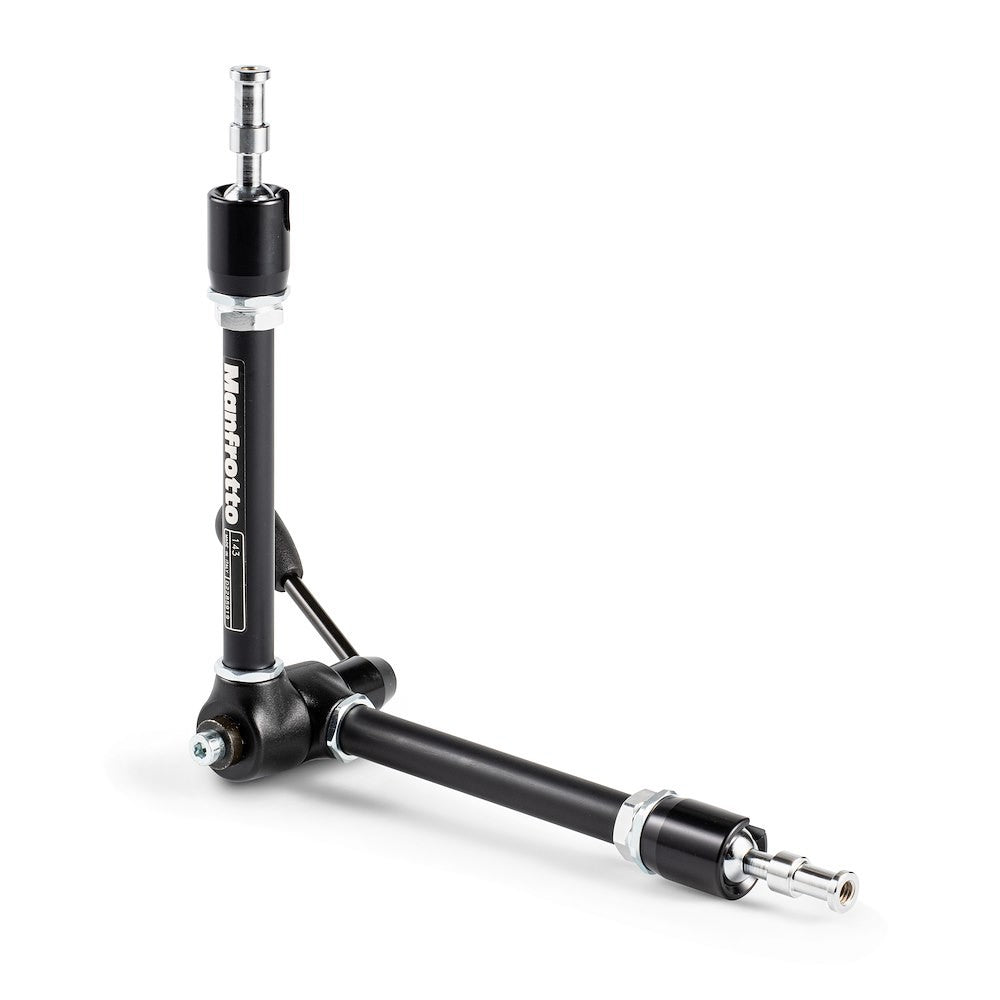

Manfrotto 143N Magic Arm

The Manfrotto 143N Magic Arm is a classic articulated arm that locks all three of its movements with a single centre lever and holds up to 3 kg. Reaching 53 cm, it is a versatile mounting solution for positioning cameras, monitors, lights and accessories exactly where you need them.

Key Features

• Single-lever locking: one centre lever locks all three movements at once for fast, secure positioning.
• Flexible articulation: the jointed arm angles and extends to reach awkward positions on set or rig.
• 3 kg payload: supports cameras, monitors, small lights and accessories.
• 53 cm reach: extends to place gear away from the mounting point.
• Aluminium build: 20 mm arm tubes keep it light at just over 1 kg while staying rigid.
• 16 mm stud ends: pair with a Super Clamp or camera bracket for flexible mounting.

Ideal For

• Mounting cameras or monitors in tight or awkward positions.
• Positioning small lights and accessories on set.
• Rigging gear to stands, bars and structures with a Super Clamp.

Specifications

• Length: 53 cm
• Load capacity: 3 kg
• Attachment: 16 mm (5/8 in) studs at both ends; camera bracket not included
• Locking: single centre lever locks all movements
• Arm tube diameter: 20 mm
• Weight: 1.07 kg
• Material: Aluminium

Available from Prosales Broadcast, South Africa.
