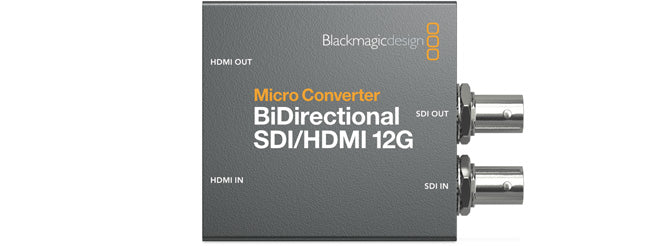

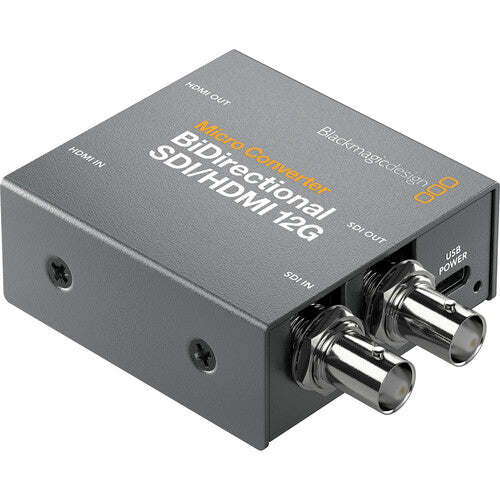

Blackmagic Design Micro Converter BiDirect SDI/HDMI 12G PSU
Two way 12G-SDI and HDMI converter handling SD, HD and Ultra HD up to 2160p60, supplied with an AC power supply.
SKU: BLA-CONVBDC/SDI/HDMI12G/P
You are on the list. We will email you the moment it is back.
Something went wrong. Please try again.
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityMade to order
Currently made to order. Contact us for lead times.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G is a powerful little converter that handles SDI to HDMI and HDMI to SDI conversion at the same time, in all SD, HD and Ultra HD formats up to 2160p60. Each direction can run a different video standard at once, so a single unit does the work of two converters.
Multi-rate 12G-SDI connections make it compatible with virtually all professional broadcast equipment, including Level A and B devices. This version ships with an AC power supply with international socket adaptors, while USB-C can also power the unit and load software updates.
Key Features
- Simultaneous bidirectional SDI to HDMI and HDMI to SDI conversion
- Supports SD, HD and Ultra HD up to 2160p60 and 4K DCI
- Multi-rate 12G-SDI with HDMI 2.0 connections
- 33 point 3D LUT for monitor calibration on SDI to HDMI
- Blackmagic Camera Control and Tally support
- Included AC power supply with international adaptors
Ideal For
- Ultra HD and 4K monitoring on set and in studio
- Mixed SDI and HDMI signal chains in one rig
- Live production and outside broadcast workflows
- Controlling Blackmagic cameras from SDI switchers
- Bridging professional 12G-SDI gear with HDMI displays
Specifications
- 1x multi-rate 12G-SDI input and 1x SDI output
- 1x HDMI 2.0 Type A input and 1x HDMI 2.0 Type A output
- SDI rates 270Mb, 1.5G, 3G, 6G and 12G
- Resolutions up to 2160p60 and 4K DCI up to 60
- 33 point 3D LUT with camera control and tally
- Power consumption 5W maximum, operating voltage 4.4V to 5.25V DC
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| Conversion | Bidirectional, simultaneous |
| SDI Input | 1x multi-rate 12G-SDI |
| SDI Output | 1x, matches HDMI input |
| HDMI Input | 1x HDMI 2.0 Type A |
| HDMI Output | 1x HDMI 2.0 Type A |
| SDI Rates | 270Mb, 1.5G, 3G, 6G, 12G |
| Max Resolution | 2160p60 and 4K DCI up to 60 |
| 3D LUT | 33 point on SDI to HDMI |
| Camera Control | Camera Control and Tally |
| SDI Compliance | SMPTE 259M to 2108-1 family |
| Power Consumption | 5W maximum |
| Operating Voltage | 4.4V to 5.25V DC |
| Operating Temperature | 0 to 40 degrees Celsius |
| In the Box | Converter and AC power supply |
Ultra HD Up to 2160p60
Multi-rate 12G-SDI connections handle everything from SD through to Ultra HD at 2160p60 and 4K DCI. It is compatible with virtually all professional broadcast equipment.
Two Converters in One
Convert SDI to HDMI and HDMI to SDI at the same time, with each direction able to run a different video standard. A 33 point 3D LUT can be applied on the SDI to HDMI path.
Camera Control and Power Supply
Bidirectional conversion supports Blackmagic Camera Control and Tally for working cameras with SDI switchers. The included AC power supply ships with international socket adaptors.
