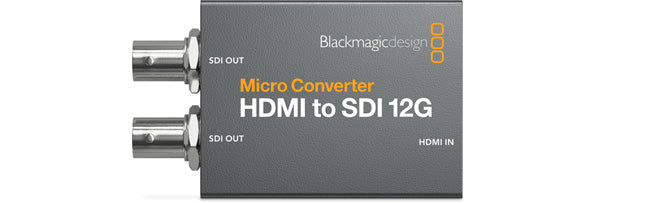

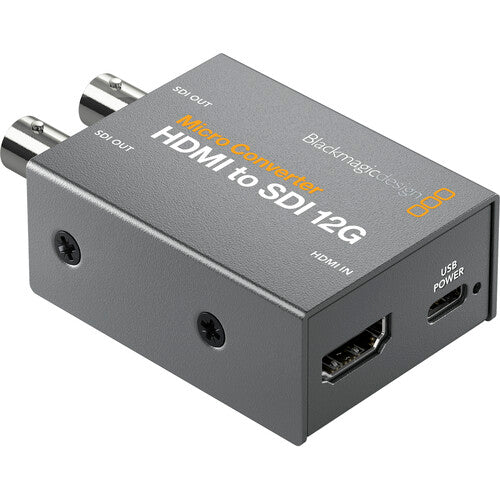

Blackmagic Design Micro Converter HDMI to SDI 12G PSU
One of the world's smallest HDMI to 12G-SDI broadcast converters, with dual SDI outputs and an included power supply.
SKU: BLA-CONVCMIC/HS12G/WPSU
You are on the list. We will email you the moment it is back.
Something went wrong. Please try again.
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityMade to order
Currently made to order. Contact us for lead times.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The Blackmagic Design Micro Converter HDMI to SDI 12G is one of the world's smallest HDMI to 12G-SDI broadcast quality converters, letting you connect HDMI cameras, computers and consumer devices to professional SDI equipment. This PSU model includes a power supply for permanent installations.
It features a full size HDMI 2.0 input and two 12G-SDI outputs that automatically match the input, with multi-rate auto detection of SD, HD, 2K, Ultra HD and 4K formats up to 2160p60 and 4K DCI.
Key Features
- HDMI 2.0 input converted to two reclocked 12G-SDI outputs
- Multi-rate auto detection of SD, HD, 2K, Ultra HD and 4K signals
- Supports formats up to 2160p60 and 4Kp60 DCI
- 33-point 3D LUT support via the free software utility
- Included power supply for fixed installations
- Tiny, rugged all-metal design
Ideal For
- Connecting HDMI cameras to professional SDI workflows
- Feeding computer or laptop output into broadcast systems
- Live event and studio signal distribution
- Permanent rack and equipment installations
Specifications
- 1x HDMI 2.0 Type A input
- 2x 12G-SDI outputs with reclocking
- SDI rates: 270Mb, 1.5G, 3G, 6G, 12G
- 4:2:2 colour precision, YUV colour space
- 4W maximum power consumption
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| HDMI Input | 1x HDMI 2.0 Type A |
| SDI Output | 2x 12G-SDI (auto-matches input) |
| Reclocking | Yes |
| SDI Rates | 270Mb, 1.5G, 3G, 6G, 12G |
| HD Formats | 720p, 1080i, 1080p up to 60 |
| Ultra HD Formats | 2160p23.98 to 2160p60 |
| 4K DCI | 4Kp23.98 to 4Kp60 DCI |
| Colour Precision | 4:2:2 YUV |
| 3D LUT | 33-point via software utility |
| Power Consumption | 4W maximum |
| Operating Voltage | 4.4V to 5.25V DC |
| Operating Temperature | 0 to 40 degrees C |
| Warranty | 3 year limited |
Pocket Sized 12G Conversion
One of the smallest broadcast quality HDMI to 12G-SDI converters available. The rugged all-metal body slips behind any camera or monitor.
Up to 4K DCI
Multi-rate auto detection handles everything from SD to Ultra HD and 4K DCI, up to 2160p60. The two 12G-SDI outputs let you feed two destinations at once.
Included Power Supply
This PSU version ships with a power supply, ideal for permanent installations. It can also run on USB-C power from a laptop or phone charger when on the move.
