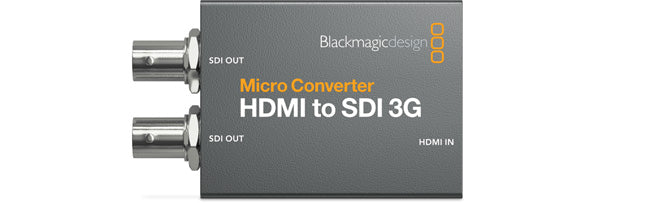

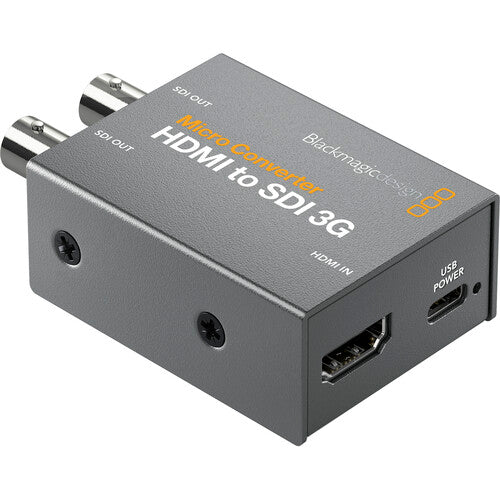

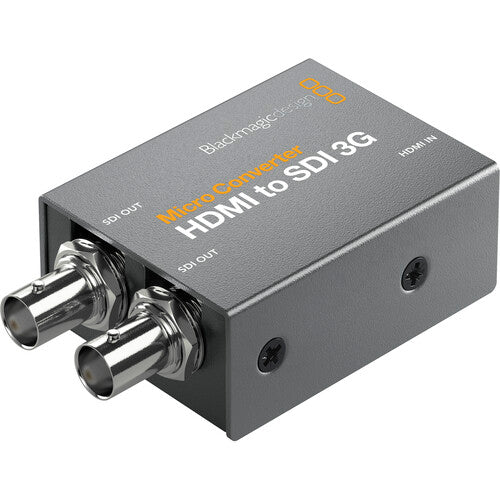

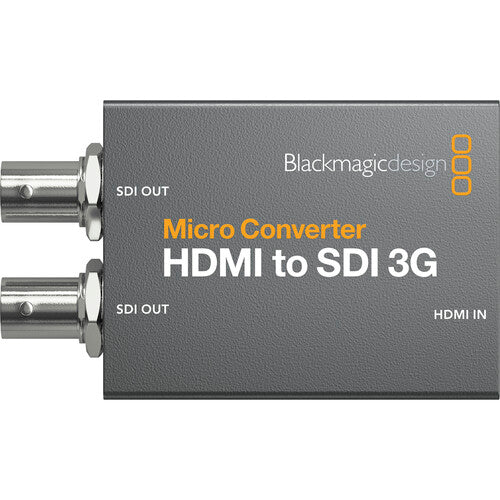

Blackmagic Design Micro Converter HDMI to SDI 3G PSU

The Blackmagic Design Micro Converter HDMI to SDI 3G is a tiny, rugged converter that connects HDMI cameras, computers and consumer equipment to professional SDI broadcast gear. It takes a single HDMI input and provides two reclocked 3G-SDI outputs, making it ideal for feeding monitors, switchers and recorders over long SDI cable runs.

This version ships with a mains power supply (PSU) so you can run it reliably without relying on a host device, while the USB-C port still allows powering from a laptop, monitor or computer and loading software updates.

Key Features

• One HDMI Type A input with two 3G-SDI outputs that automatically match the input format
• Outputs selectable for SDI Level A or Level B operation
• SDI reclocking for clean signals over long cable runs
• Supports SD, HD and 1080p formats up to 1080p60
• USB Type-C for power, configuration and software updates
• Included mains power supply for standalone use

Ideal For

• Connecting HDMI cameras to SDI switchers and recorders
• Sending a computer or laptop HDMI feed into a broadcast chain
• Live production and outside broadcast rigs
• AV installations needing reliable HDMI to SDI conversion
• Studios distributing a signal to multiple SDI destinations

Specifications

• 1x HDMI Type A input
• 2x SD, HD or 3G-SDI outputs with reclocking
• SDI compliant with SMPTE 259M, 292M, 296M, 424M and 425M
• 4:2:2 YUV colour precision
• Power consumption 2W, operating voltage 4.4V to 5.25V DC
• Operating temperature 0 to 40 degrees Celsius

Available from Prosales Broadcast, South Africa's authorised Blackmagic Design reseller and integrator.
