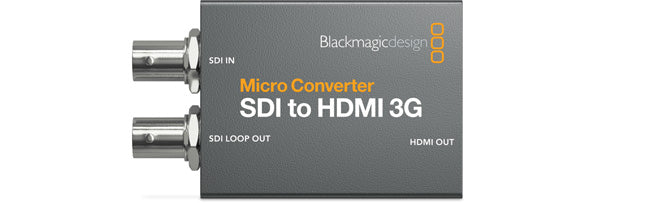

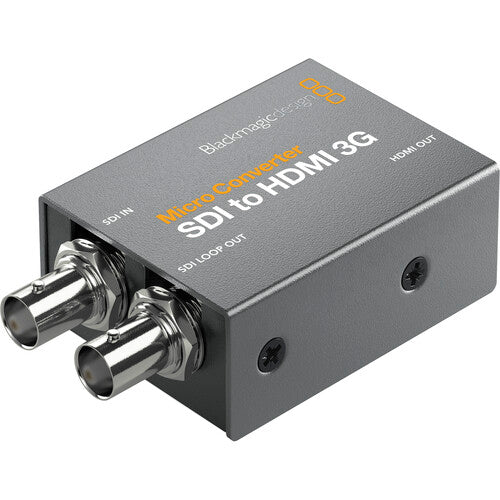

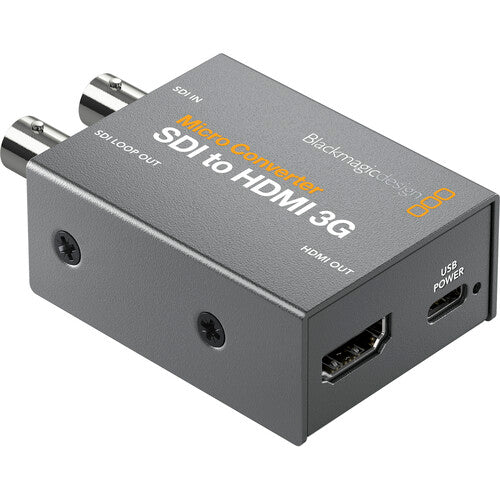

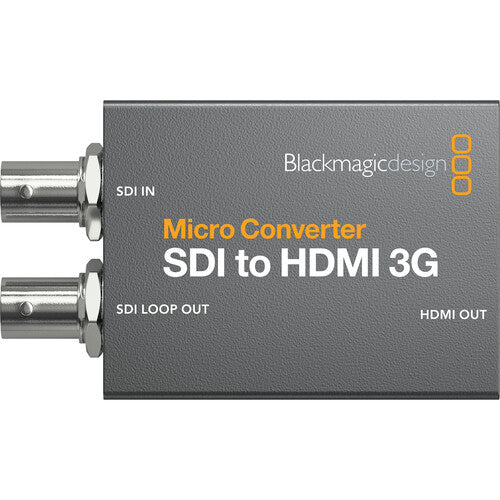

Blackmagic Design Micro Converter SDI to HDMI 3G PSU
Miniature broadcast converter turning an SDI input into HDMI with an SDI loop output, supplied with a mains power supply.
SKU: BLA-CONVCMIC/SH03G/WPSU
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityOnly 1 left
In stock and dispatched from our Johannesburg warehouse.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The Blackmagic Design Micro Converter SDI to HDMI 3G is a miniature, broadcast quality converter that takes a professional SDI signal and outputs it to HDMI, so you can feed televisions, computer monitors, projectors and consumer displays from SDI sources. A dedicated SDI loop output lets you pass the signal on to the next device in your chain.
This version ships with a mains power supply (PSU) for reliable standalone use, while the USB-C connection can also draw power from a monitor, laptop or computer and is used to load software updates and a custom LUT.
Key Features
- One SD, HD or 3G-SDI input with HDMI Type A output
- SDI loop output to feed the signal to another device
- Automatically detects SD, HD and SDI Level A or B
- 17 point LUT can be loaded for monitor calibration
- USB Type-C for power, configuration and updates
- Included mains power supply for standalone operation
Ideal For
- Monitoring SDI camera and switcher feeds on HDMI displays
- Driving projectors and TVs from a broadcast SDI source
- On-set and studio video village setups
- Live events and outside broadcast monitoring
- AV installations bridging SDI infrastructure to HDMI screens
Specifications
- 1x SD, HD or 3G-SDI input
- 1x HDMI Type A output plus 1x SDI loop output
- SDI rates 270Mb, 1.5G and 3G
- SDI compliant with SMPTE 259M, 292M, 296M, 424M and 425M
- 4:2:2 YUV colour precision with 17 point LUT support
- Power consumption 1.6W, operating voltage 4.4V to 5.25V DC
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| SDI Input | 1x SD, HD or 3G-SDI |
| HDMI Output | 1x Type A |
| SDI Loop Output | 1x |
| SDI Rates | 270Mb, 1.5G, 3G |
| Auto Detection | SD, HD and SDI Level A or B |
| SDI Compliance | SMPTE 259M, 292M, 296M, 424M, 425M |
| Colour Precision | 4:2:2 YUV |
| LUT | 17 point, loadable via software |
| Power and Config | USB Type-C |
| Power Consumption | 1.6W |
| Operating Voltage | 4.4V to 5.25V DC |
| Operating Temperature | 0 to 40 degrees Celsius |
| In the Box | Converter and mains power supply |
| Warranty | 3 year limited |
SDI to HDMI with Loop Out
Convert any SD, HD or 3G-SDI source to HDMI for everyday displays. A dedicated SDI loop output passes the original signal on to the next device in the chain.
17 Point LUT Support
Load a 17 point LUT via the free software utility to calibrate or improve the colour of your monitor. The LUT can also be applied to the SDI loop output.
Included Power Supply
This version includes a mains power supply for fully standalone use. The USB-C port can also draw power from a monitor, laptop or computer when on the move.
