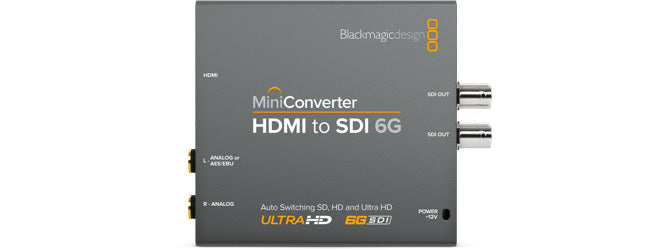

Blackmagic Design Mini Converter - HDMI to SDI 6G
Broadcast HDMI to SDI converter up to Ultra HD, with dual SDI outputs and analog plus AES/EBU audio embedding.
SKU: BLA-CONVMBHS24K6G
AvailabilityIn stock, ready to dispatch
In stock and dispatched from our Johannesburg warehouse.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The Blackmagic Design Mini Converter HDMI to SDI 6G converts HDMI sources such as cameras, computers and consumer devices into professional SDI signals for broadcast and live production. It supports SD, HD and 6G-SDI output up to Ultra HD, with two SDI outputs that automatically match the HDMI input.
Two channels of balanced analog audio on quarter inch jacks and two channels of AES/EBU digital audio can be embedded into the SDI stream, making it easy to add professional sound to an HDMI source.
Key Features
- HDMI input converted to two matching 6G-SDI outputs
- Auto detection of SD, HD and 6G-SDI up to Ultra HD
- Embeds balanced analog and AES/EBU digital audio into SDI
- Dual SDI outputs to feed two destinations
- Rugged metal chassis for studio and field use
- Settings via built in Mini Switches or USB software
Ideal For
- Bringing HDMI cameras into SDI broadcast workflows
- Feeding computer and laptop output to SDI systems
- Live event and corporate production
- Adding professional audio to HDMI sources
- Studio and outside broadcast signal distribution
Specifications
- 1x HDMI Type A input
- 2x SDI outputs, auto matched to input
- SDI rates: SD, HD, 6G with auto detect
- Supports up to 2160p30 and 4K DCI
- 12V to 18V DC, 4.44W consumption
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| HDMI Input | 1x HDMI Type A |
| SDI Output | 2x SDI (auto-matches input) |
| SDI Rates | SD, HD, 6G with auto detect |
| HD Formats | 720p, 1080i, 1080p up to 60 |
| Ultra HD Formats | 2160p23.98 to 2160p30 |
| 4K DCI | Supported |
| Analog Audio | 2ch balanced on 1/4 inch jacks |
| Digital Audio | 2ch AES/EBU |
| Control | Mini Switches or USB software |
| Power Consumption | 4.44W |
| Operating Voltage | 12V to 18V DC |
| Operating Temperature | 0 to 40 degrees C |
| Included | Converter and 12V universal PSU |
HDMI Into Pro SDI
Takes any HDMI source, from cameras to computers, and converts it to professional SDI. Two SDI outputs automatically match the input so you can feed two destinations at once.
Add Professional Audio
Embed two channels of balanced analog audio on quarter inch jacks plus two channels of AES/EBU digital audio into the SDI stream. Ideal for adding clean sound to an HDMI feed.
Up to Ultra HD
Auto detection handles SD, HD and 6G-SDI formats up to 2160p30 Ultra HD. The rugged metal body is built for both studio racks and demanding field work.
