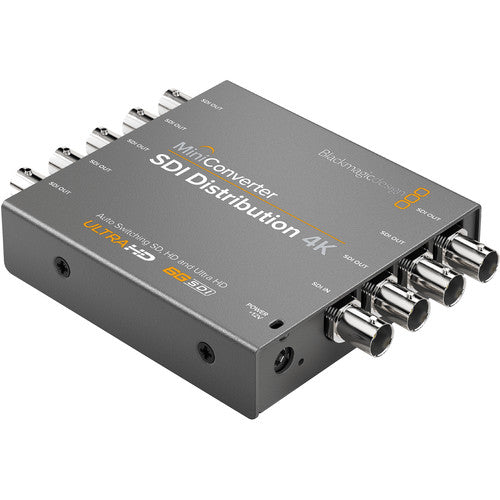

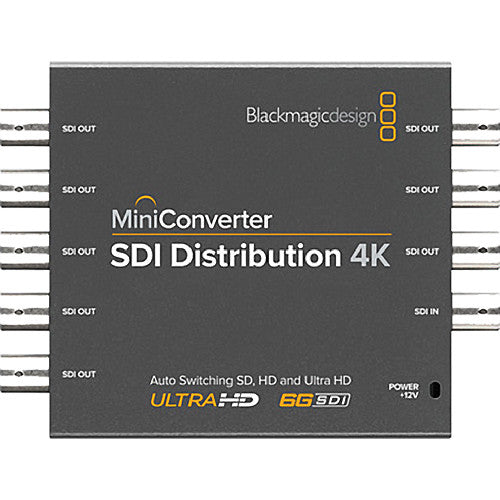

Blackmagic Design Mini Converter - SDI Distribution 4K
6G-SDI distribution amplifier feeding one SDI input to 8 re-clocked outputs up to Ultra HD and 4K DCI.
SKU: BLA-CONVMSDIDA4K
You are on the list. We will email you the moment it is back.
Something went wrong. Please try again.
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityMade to order
Currently made to order. Contact us for lead times.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The Blackmagic Design Mini Converter SDI Distribution 4K connects a single SDI source to 8 re-clocked SDI outputs at the same time. Built around 6G-SDI technology, it carries everything from SD up to Ultra HD and 4K DCI, making it ideal for high resolution distribution.
The unit automatically switches between SD, HD, 3G-SDI and 6G-SDI formats, so there is nothing to configure. Every output is fully re-clocked for clean, reliable signals, and the rugged compact housing is built for both studio racks and the field.
Key Features
- Distributes one SDI input to 8 re-clocked SDI outputs
- 6G-SDI support for Ultra HD and 4K DCI distribution
- Automatic switching across SD, HD, 3G-SDI and 6G-SDI
- Fully re-clocked outputs for stable signals
- Carries embedded audio and ancillary data through every output
- Rugged compact metal housing for studio and location use
Ideal For
- Distributing 4K and Ultra HD feeds to multiple devices
- Live event and outside broadcast signal splitting
- Broadcast trucks and machine room patching
- Feeding several monitors from one SDI source
- Post production and edit suite signal routing
Specifications
- 1x SDI input, 8x re-clocked SDI outputs
- SDI rates SD, HD, 3G-SDI and 6G-SDI
- Ultra HD up to 2160p30 and 4K DCI up to 25p
- 48 kHz, 24-bit embedded audio passthrough
- Power consumption 4.8 Watts
- Operating temperature 0 to 40 degrees C
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| Function | SDI distribution amplifier, 1 input to 8 outputs |
| SDI input | 1x switchable SD, HD, 6G-SDI |
| SDI outputs | 8x re-clocked, auto matching input |
| SDI rates | SD, HD, 3G-SDI, 6G-SDI |
| Ultra HD support | Up to 2160p30 |
| 4K DCI support | Up to 4K DCI 25p |
| Re-clocking | Yes, fully re-clocked outputs |
| Video sampling | 4:2:2 and 4:4:4 |
| Color space | YUV and RGB |
| Audio sampling | 48 kHz, 24-bit embedded passthrough |
| SDI compliance | SMPTE 259M, 292M, 296M, 372M, ST-2081 |
| Power consumption | 4.8 Watts |
| Operating temperature | 0 to 40 degrees C |
| Storage temperature | -20 to 45 degrees C |
| Humidity | 0% to 90% non-condensing |
4K Ready Distribution
6G-SDI technology carries resolutions up to Ultra HD and 4K DCI. Distribute high resolution feeds to 8 destinations from a single SDI source.
Automatic and Re-Clocked
The converter auto detects and switches between SD, HD, 3G-SDI and 6G-SDI with nothing to configure. Every one of the 8 outputs is fully re-clocked for clean, stable signals.
Compact and Rugged
The tough compact metal housing draws just 4.8 Watts and ships with a universal 12V supply. It is equally at home in studio racks and on location.
