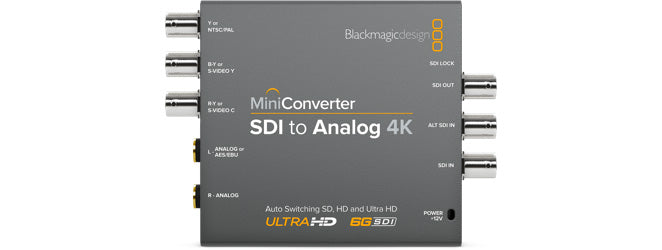

Blackmagic Design Mini Converter - SDI to Analog 4K
Converts SD, HD, 3G and 6G-SDI video to analog component, S-Video, NTSC and PAL with built-in down conversion.
SKU: BLA-CONVMASA4K
You are on the list. We will email you the moment it is back.
Something went wrong. Please try again.
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityMade to order
Currently made to order. Contact us for lead times.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The Blackmagic Design Mini Converter SDI to Analog 4K gives you everything you need to convert SD, HD, 3G and 6G-SDI video into analog component, S-Video, NTSC and PAL signals. A built-in down converter means you can even connect Ultra HD and 6G-SDI sources to standard definition or HD analog equipment.
With a redundant ALT SDI input that automatically takes over if the main feed is lost, plus balanced analog and AES/EBU digital audio outputs, it is the ideal bridge between modern SDI workflows and legacy analog gear such as Betacam SP, VHS decks and analog monitors.
Key Features
- Converts SD, HD, 3G and 6G-SDI to component, S-Video, NTSC and PAL analog video
- Built-in down converter for connecting Ultra HD and 4K DCI sources to analog equipment
- Redundant ALT SDI input with automatic failover if the main signal is lost
- SDI loop output for daisy-chaining to additional equipment
- 2 channels of balanced analog audio plus 2 channels of AES/EBU digital audio on 1/4 inch jacks
- Compact, rugged metal housing powered by a universal 12V supply
Ideal For
- Connecting modern SDI cameras and switchers to legacy analog monitors
- Archival and transfer workflows involving Betacam SP and VHS
- Broadcast facilities maintaining mixed analog and digital infrastructure
- Outside broadcast and studio signal distribution
- Editing suites needing reliable SDI to analog monitoring
Specifications
- SDI input: SD, HD and 6G-SDI with redundant ALT input
- Analog outputs: component, S-Video, NTSC and PAL
- Audio: 2 channels balanced analog plus 2 channels AES/EBU, 48 kHz 24-bit
- Supports up to 2160p and 4K DCI sources via down conversion
- Power consumption: 8.04 Watts, operating voltage 12V to 31V DC
- Operating temperature: 0 to 40 degrees Celsius
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| SDI Inputs | 1x SD/HD/6G-SDI plus 1x redundant ALT SDI |
| SDI Outputs | 1x SDI loop output |
| Analog Outputs | Component, S-Video, NTSC and PAL |
| Audio Outputs | 2ch balanced analog and 2ch AES/EBU digital (1/4 inch) |
| SD Formats | 525i59.94 NTSC, 625i50 PAL |
| HD Formats | 720p, 1080i, 1080p and 1080PsF |
| 2K and 4K | 2K DCI, 2160p and 4K DCI sources via down conversion |
| Audio Sampling | 48 kHz, 24-bit |
| Power | +12V universal supply, 8.04 Watts |
| Operating Voltage | 12V to 31V DC |
| Operating Temperature | 0 to 40 degrees Celsius |
| In the Box | Converter, power supply with international adapters, software |
Built-In Down Converter
Connect Ultra HD, 4K DCI and 6G-SDI sources straight to analog equipment. The internal down converter handles the conversion so legacy gear sees a clean SD or HD signal.
Redundant SDI Input
A second ALT SDI input provides automatic failover. If the main feed is lost the converter switches over instantly, keeping your output live.
Professional Audio De-Embedding
De-embed two channels of balanced analog audio and two channels of AES/EBU digital audio on standard 1/4 inch jacks at 48 kHz and 24-bit.
