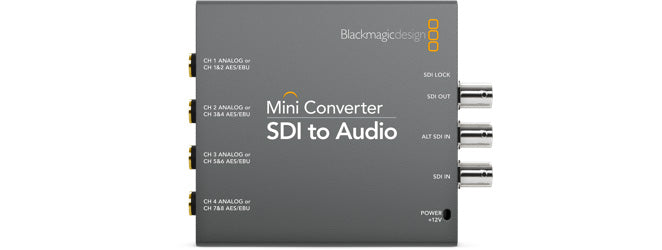

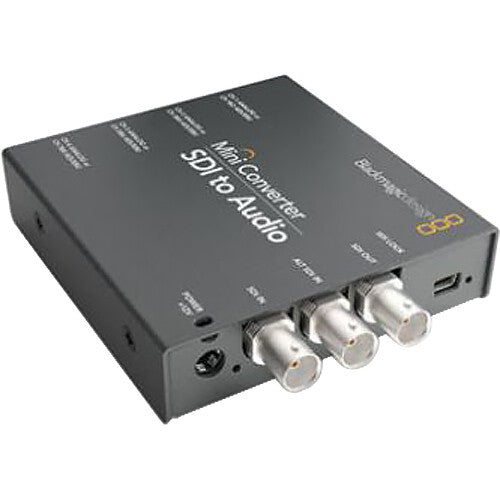

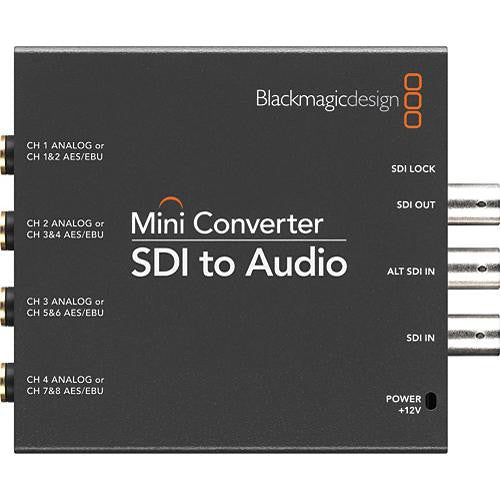

Blackmagic Design Mini Converter - SDI to Audio
De-embeds 4 channels of analog or 8 channels of AES/EBU audio from any SD, HD or 3G-SDI video connection.
SKU: BLA-CONVMCSAUD
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityOnly 3 left
In stock and dispatched from our Johannesburg warehouse.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The Blackmagic Design Mini Converter SDI to Audio de-embeds audio from any SD, HD or 3G-SDI video connection and outputs it to external audio equipment. It extracts 4 channels of balanced analog audio or 8 channels of AES/EBU digital audio for connection to mixers, decks and monitors.
With an SDI loop output, a redundant ALT SDI input and automatic format detection, it is a dependable way to pull clean audio from your video signal in broadcast and live production setups.
Key Features
- De-embeds 4 channels of analog audio or 8 channels of AES/EBU digital audio from SDI
- Supports SD, HD and 3G-SDI with automatic format detection
- SDI loop output passes the original signal through unchanged
- Redundant ALT SDI input with automatic failover if the main signal is lost
- Professional audio on standard 1/4 inch jacks at 48 kHz, 24-bit
- Compact, rugged metal housing with a universal 12V power supply
Ideal For
- Feeding audio mixers and monitors from SDI camera and switcher outputs
- Live production and broadcast audio monitoring
- Connecting digital SDI workflows to analog audio decks
- Edit suites and post production audio de-embedding
- Facilities needing redundant SDI signal paths
Specifications
- SDI input: SD, HD and 3G-SDI plus redundant ALT input
- SDI output: 1 SDI loop output
- Audio: 4 channels analog or 8 channels AES/EBU on 1/4 inch jacks
- Audio sampling: 48 kHz, 24-bit
- Power consumption: 5.52 Watts, operating voltage 12V to 15V DC
- Operating temperature: 0 to 40 degrees Celsius
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| SDI Inputs | 1x SD/HD/3G-SDI plus 1x redundant ALT SDI |
| SDI Outputs | 1x SDI loop output |
| Analog Audio | 4 channels balanced (1/4 inch jacks) |
| AES/EBU Audio | 8 channels balanced (1/4 inch jacks) |
| SD Formats | 525i59.94 NTSC, 625i50 PAL |
| HD Formats | 720p, 1080i and 1080p up to 1080p60 |
| Audio Sampling | 48 kHz, 24-bit |
| SDI Rate | Auto SD, HD and 3G-SDI switching |
| Power | +12V universal supply, 5.52 Watts |
| Operating Voltage | 12V to 15V DC |
| Operating Temperature | 0 to 40 degrees Celsius |
| In the Box | Converter and power supply with international adapters |
Up to 8 Channels of Audio
De-embed 4 channels of balanced analog audio or 8 channels of AES/EBU digital audio. Every output is on a standard 1/4 inch jack at 48 kHz and 24-bit.
SDI Loop Through
The SDI loop output passes the original video signal straight through, so you can pull audio out without interrupting the rest of your signal chain.
Redundant Input Protection
A second ALT SDI input takes over automatically if the main feed fails, keeping your de-embedded audio running without a dropout.
