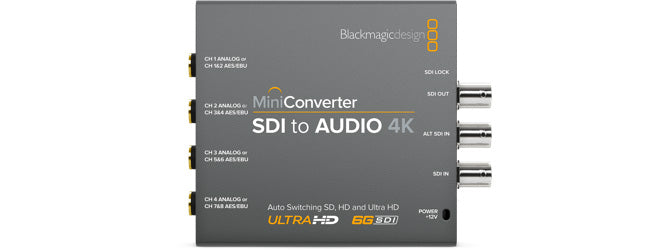

Blackmagic Design Mini Converter - SDI to Audio 4K
De-embeds 4 channels of analog or 8 channels of AES/EBU audio from any SD, HD or 6G-SDI signal up to 4K.
SKU: BLA-CONVMCSAUD4K
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityOnly 2 left
In stock and dispatched from our Johannesburg warehouse.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The Blackmagic Design Mini Converter SDI to Audio 4K lets you de-embed audio from any SDI video connection and send it to external audio equipment. It extracts 4 channels of balanced analog audio or 8 channels of AES/EBU digital audio from SD, HD, 3G and 6G-SDI signals.
With a 6G-SDI input that handles resolutions all the way up to Ultra HD and 4K DCI, plus an SDI loop output and automatic input switching, it is the perfect tool for feeding audio mixers, broadcast decks and audio monitors from your video signal.
Key Features
- De-embeds 4 channels of analog audio or 8 channels of AES/EBU digital audio from SDI
- 6G-SDI input supports resolutions up to Ultra HD 3840x2160 and 4K DCI 4096x2160
- SDI video loop output passes the original signal through unchanged
- Redundant ALT SDI input with automatic failover
- Professional audio on standard 1/4 inch jack connectors at 48 kHz, 24-bit
- Configurable via built-in DIP switches or included Mac and Windows software
Ideal For
- Feeding audio mixers and monitors from SDI camera and switcher outputs
- Broadcast and live production audio monitoring
- Connecting modern 4K SDI workflows to analog audio decks
- Post production and edit suite audio de-embedding
- Outside broadcast facilities with redundant signal paths
Specifications
- SDI input: SD, HD and 6G-SDI plus redundant ALT input
- SDI output: 1 SDI video loop output
- Audio: 4 channels analog or 8 channels AES/EBU on 1/4 inch jacks
- Supports resolutions up to 2160p Ultra HD and 4K DCI
- Power consumption: 5.52 Watts, operating voltage 12V to 31V DC
- Operating temperature: 0 to 40 degrees Celsius
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| SDI Inputs | 1x SD/HD/6G-SDI plus 1x redundant ALT SDI |
| SDI Outputs | 1x SDI video loop output |
| Max Resolution | Ultra HD 3840x2160 and 4K DCI 4096x2160 |
| Analog Audio | 4 channels balanced (1/4 inch jacks) |
| AES/EBU Audio | 8 channels balanced (1/4 inch jacks) |
| HD Formats | 720p, 1080i, 1080p and 1080PsF |
| 4K Formats | 2160p23.98 to 2160p30, plus 2K DCI |
| Audio Sampling | 48 kHz, 24-bit |
| Control | Built-in DIP switches or USB software |
| Power | +12V universal supply, 5.52 Watts |
| Operating Voltage | 12V to 31V DC |
| Operating Temperature | 0 to 40 degrees Celsius |
| In the Box | Converter and power supply with international adapters |
True 6G-SDI to 4K Support
The 6G-SDI input accepts resolutions all the way up to Ultra HD and 4K DCI. The loop output passes the original video through so you can de-embed audio without breaking the signal chain.
Up to 8 Channels of Audio
Extract 4 channels of balanced analog audio or 8 channels of AES/EBU digital audio. Every output uses standard 1/4 inch jacks at 48 kHz and 24-bit.
Simple, Reliable Setup
Configure the converter using the built-in DIP switches or the included Mac and Windows software. A redundant ALT SDI input switches over automatically if the main feed is lost.
