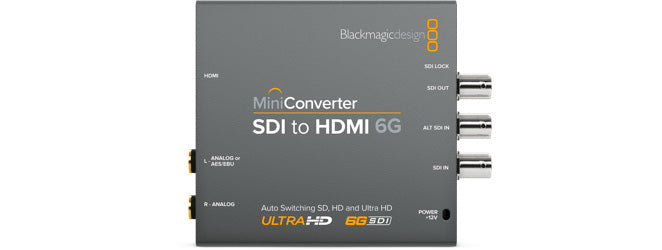

Blackmagic Design Mini Converter - SDI to HDMI 6G
Broadcast SDI to HDMI converter up to Ultra HD, with HDMI Instant Lock, redundant input and a 33-point 3D LUT.
SKU: BLA-CONVMBSH4K6G
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityOnly 1 left
In stock and dispatched from our Johannesburg warehouse.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float
The Blackmagic Design Mini Converter SDI to HDMI 6G converts SDI signals from professional broadcast and cinema equipment to HDMI for displays, televisions, projectors and video walls. It supports SD, HD, 3G-SDI and 6G-SDI inputs up to Ultra HD and 2K DCI.
HDMI Instant Lock keeps an active signal running to the display so switching between matching sources can lock in as little as one frame. A redundant ALT SDI input automatically takes over if the main signal fails.
Key Features
- Auto detected SD, HD, 3G-SDI and 6G-SDI input up to Ultra HD
- HDMI Instant Lock for fast, glitch free source switching
- Redundant ALT SDI input for automatic failover
- SDI loop output to feed downstream equipment
- Full 33-point 3D LUT for on set monitoring looks
- De-embedded balanced analog and AES/EBU digital audio
Ideal For
- Driving HDMI monitors and projectors from SDI sources
- Live event and stage display feeds
- On set monitoring with custom LUTs
- Broadcast machine rooms needing redundancy
- Video wall and signage installations
Specifications
- 1x 6G-SDI input plus 1x ALT SDI input
- 1x SDI loop output and 1x HDMI Type A output
- Supports up to 2160p30 and 2K DCI
- 2 channels balanced analog and AES/EBU audio
- 12V to 18V DC, 5.2W consumption
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| SDI Input | 1x SD/HD/6G-SDI plus 1x ALT SDI |
| SDI Output | 1x SDI loop output |
| HDMI Output | 1x HDMI Type A |
| SDI Rates | SD, HD, 3G, 6G with auto detect |
| HD Formats | 720p, 1080i, 1080p up to 60 |
| Ultra HD Formats | 2160p23.98 to 2160p30 |
| 4K DCI | 4096 x 2160 at 24p |
| Audio Out | 2ch balanced analog and AES/EBU |
| 3D LUT | 33-point lookup table |
| Sample Rate | 48 kHz, 24 bit |
| Power Consumption | 5.2W |
| Operating Voltage | 12V to 18V DC |
| Operating Temperature | 0 to 40 degrees C |
| Included | Converter and 12V universal PSU |
HDMI Instant Lock
Instant Lock keeps an active HDMI signal running to the display. Switching between matching sources can lock in as little as one frame, avoiding black screens during cuts.
Built In Redundancy
A second ALT SDI input automatically takes over if the main feed fails. The SDI loop output also lets you pass the signal on to other equipment in the chain.
On Set Colour With 3D LUTs
A full 33-point 3D lookup table lets you apply custom looks, colour and gamma changes in real time. This makes it ideal for accurate on set monitoring.
