Blackmagic Design UltraStudio HD Mini (Thunderbolt 3) (TB3 Cable not included)
Compact bus powered Thunderbolt 3 capture and playback with 3G-SDI, HDMI and RS-422 up to 1080p60.
SKU: BLA-BDLKULSDMINHD
You are on the list. We will email you the moment it is back.
Something went wrong. Please try again.
1-Year Warranty · Authorised SA Distributor · Nationwide Shipping
AvailabilityMade to order
Currently made to order. Contact us for lead times.
ShippingNationwide courier
We deliver across South Africa with reliable courier partners. Shipping is calculated at checkout.
Bulk & trade ordersGet a quote
Buying in volume? Contact us for trade and bulk pricing.
Finance optionsStitch · Payflex · Float

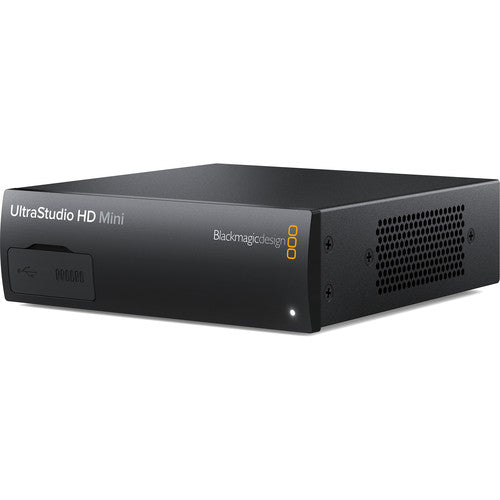

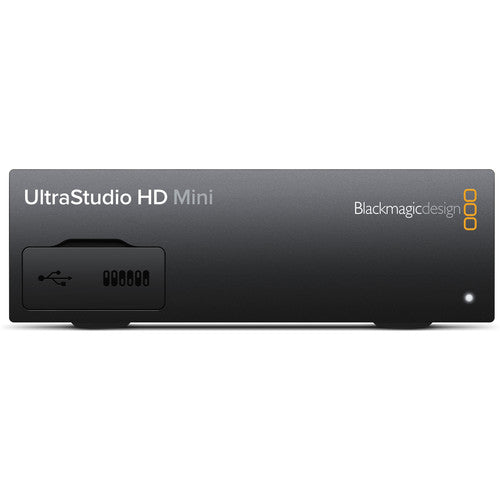

The Blackmagic Design UltraStudio HD Mini is a compact, bus powered Thunderbolt 3 capture and playback solution with professional broadcast quality connections. It sends and receives SD and HD video up to 1080p60 with up to 16 channels of embedded audio, all through a single Thunderbolt 3 cable.

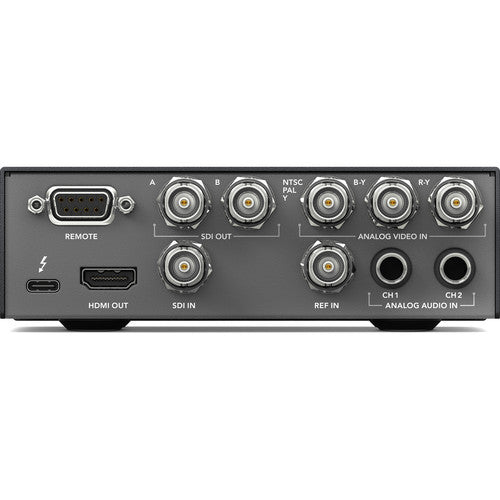

With 3G-SDI, HDMI, analog video inputs, reference and RS-422 deck control, it packs serious connectivity into a tiny chassis that can run entirely from a laptop battery with no power connection required.
Key Features
- Compact bus powered Thunderbolt 3 capture and playback
- 3G-SDI input and dual 3G-SDI outputs with fill and key support
- HDMI output for monitoring on a large screen television
- Analog component and composite NTSC/PAL video input
- Up to 16 channels of embedded SDI audio
- RS-422 deck control for professional broadcast decks
- Tri-Sync or Black Burst reference input
Ideal For
- Mobile and laptop based HD edit suites
- Capturing and mastering from legacy tape decks
- Keying and fill and key graphics workflows
- Quality control and review in post production
- Field capture where no mains power is available
Specifications
- SDI input: 1 x 3G-SDI SD/HD switchable
- SDI outputs: 2 x 3G-SDI with fill and key
- HDMI output: 1 x HDMI 1.4b type A
- Maximum format: 1080p60
- Audio: 16 channels embedded SDI
- Interface: bus powered Thunderbolt 3
Available from Prosales, South Africa's authorised Blackmagic Design reseller and integrator.
| Interface | Thunderbolt 3, bus powered |
| SDI Input | 1 x 3Gb/s SD/HD switchable |
| SDI Outputs | 2 x 3Gb/s SD/HD, fill and key |
| HDMI Output | 1 x HDMI 1.4b type A |
| Maximum Format | 1080p60 |
| Analog Video In | Component YUV or Composite NTSC/PAL |
| Analog Audio In | 2 x quarter inch jack, balanced and unbalanced |
| SDI Audio | 16 channels embedded |
| HDMI Audio | 2 channels embedded |
| Deck Control | 1 x RS-422 |
| Reference | Tri-Sync or Black Burst |
| Power | Bus powered via Thunderbolt 3 |
| Warranty | 3 year limited manufacturer warranty |
Fill And Key Output
Dual link 3G-SDI outputs support fill and key, so you can deliver clean graphics with separate alpha channels. It is ideal for live graphics, titling and broadcast keying workflows.
Runs From A Laptop Battery
The UltraStudio HD Mini is bus powered entirely over the Thunderbolt 3 cable. With no power connection required, it runs from your laptop battery for true location capture and playback.
Professional Deck Control
A built-in RS-422 connection lets you remote control professional broadcast decks. Combined with analog video inputs, it is perfect for archiving and mastering from legacy tape.
